PI3USB30532ZLEX

Obsolete

Diodes Inc

USB 3.2 GEN1/DP1.2 CROSSBAR SWITCH FOR TYPE-C

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Recommended Soldering Techniques +1

PI3USB30532ZLEX

Obsolete

Diodes Inc

USB 3.2 GEN1/DP1.2 CROSSBAR SWITCH FOR TYPE-C

Deep-Dive with AI

DocumentsDatasheet Recommended Soldering Techniques +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	PI3USB30532ZLEX

Applications	USB
Mounting Type	Surface Mount
Multiplexer/Demultiplexer Circuit	6:1
Number of Channels	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C

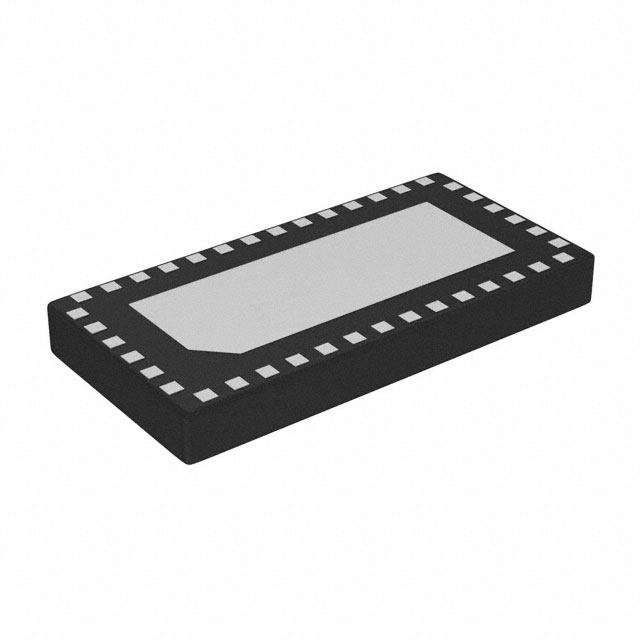

Package / Case	40-WFQFN Exposed Pad
Supplier Device Package	40-TQFN (3x6)
Voltage - Supply, Single (V+) [Max]	3.6 V
Voltage - Supply, Single (V+) [Min]	3 V

PI3USB30532 Series

USB 3.2 Gen1/DP1.2 Crossbar Switch for Type-C

Part	Applications	Number of Channels [custom]	Multiplexer/Demultiplexer Circuit	Operating Temperature [Max]	Operating Temperature [Min]	Supplier Device Package	Mounting Type	Voltage - Supply, Single (V+) [Max]	Voltage - Supply, Single (V+) [Min]	-3db Bandwidth	Package / Case	Number of Channels	Multiplexer/Demultiplexer Circuit
Diodes Inc PI3USB30532ZLCEX	USB	6	4 6	85 °C	-40 °C	40-TQFN (3x6)	Surface Mount	3.6 V	3 V	6 GHz	40-WFQFN Exposed Pad
Diodes Inc PI3USB30532ZLE	USB			85 °C	-40 °C	40-TQFN (3x6)	Surface Mount	3.6 V	3 V		40-WFQFN Exposed Pad	1	6:1
Diodes Inc PI3USB30532ZLEX	USB			85 °C	-40 °C	40-TQFN (3x6)	Surface Mount	3.6 V	3 V		40-WFQFN Exposed Pad	1	6:1

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

PI3USB30532 Series

The PI3USB30532 is a 6:4 differential channel bi-directional matrix switch solution for switching USB 3.2 Gen 1 and/or DP1.2 signals through USB 3.2 Gen 1 Type-C connector. It multiplexes either 1 lane of USB 3.2 Gen 1, 1 lane of USB 3.2 Gen 1 and 2 channels of DP1.2 or 4 channels of DP1.2 to the USB Type C connector. In addition, AUXHPD channels are also multiplexed to the Type C connector. The PI3USB30532 offers excellent signal integrity for high-speed signals and low power dissipation.
