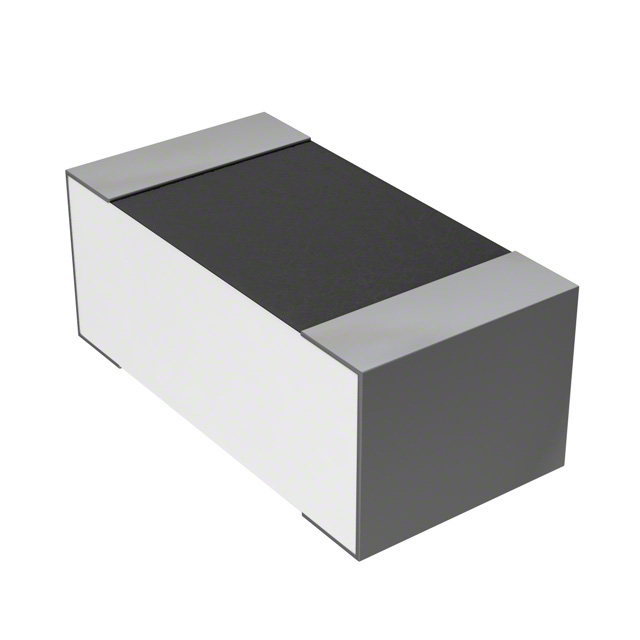

RN73C1J10RBTD
ActiveTE Connectivity AMP Connectors
RES SMD 10 OHM 0.1% 1/16W 0603
Deep-Dive with AI
Search across all available documentation for this part.
RN73C1J10RBTD
ActiveTE Connectivity AMP Connectors
RES SMD 10 OHM 0.1% 1/16W 0603
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | RN73C1J10RBTD |
|---|---|
| Composition | Thin Film |
| Height - Seated (Max) [Max] [z] | 0.022 in |
| Height - Seated (Max) [Max] [z] | 0.55 mm |
| Number of Terminations | 2 |
| Operating Temperature [Max] | 155 °C |
| Operating Temperature [Min] | -55 °C |
| Package / Case | 0603 (1608 Metric) |
| Power (Watts) | 0.0625 W |
| Power (Watts) | 0.063 W |
| Resistance | 10 Ohms |
| Temperature Coefficient | 10 ppm/°C |
| Tolerance | 0.1 % |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tape & Reel (TR) | 5000 | $ 0.20 | |
RN73C1J Series
RES SMD 10 OHM 0.1% 1/16W 0603
| Part | Temperature Coefficient | Number of Terminations | Power (Watts) | Power (Watts) | Package / Case | Tolerance | Height - Seated (Max) [Max] [z] | Height - Seated (Max) [Max] [z] | Composition | Resistance | Operating Temperature [Max] | Operating Temperature [Min] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors RN73C1J10RBTD | 10 ppm/°C | 2 | 0.0625 W | 0.063 W | 0603 (1608 Metric) | 0.1 % | 0.022 in | 0.55 mm | Thin Film | 10 Ohms | 155 °C | -55 °C |
Description
General part information
RN73C1J Series
10 Ohms ±0.1% 0.063W, 1/16W Chip Resistor 0603 (1608 Metric) Thin Film
