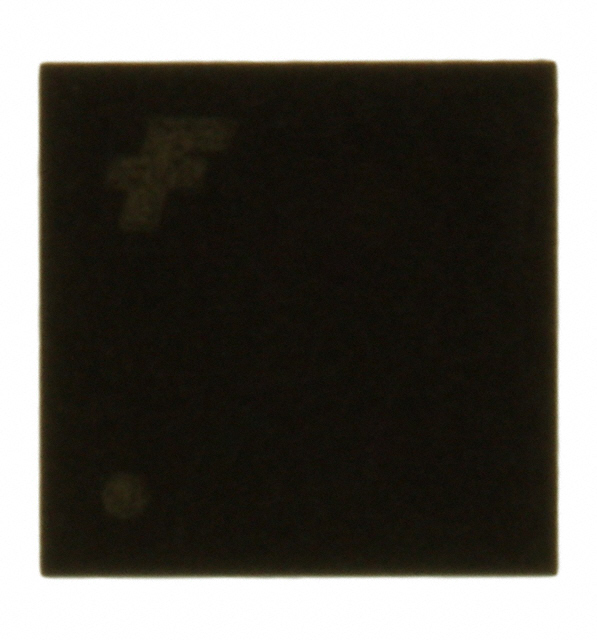

USB1T1105AMHX
ObsoleteON Semiconductor
IC TRANSCEIVER HALF 1/1 16MHBCC
USB1T1105AMHX
ObsoleteON Semiconductor
IC TRANSCEIVER HALF 1/1 16MHBCC
Description
General part information
USB1T1105AMHX
1/1 Transceiver Half 16-MHBCC (3x3)
Technical Specifications
Parameters and characteristics for this part
| Specification | USB1T1105AMHX |
|---|---|
| Data Rate | 12 Mbps |
| Duplex | Half |
| Mounting Type | Surface Mount |
| Number of Drivers | 1 |
| Number of Receivers | 1 |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | 16-WFQFN Exposed Pad |
| Package Length | 3 mm |
| Package Name | 16-MHBCC |
| Package Width | 3 mm |
| Receiver Hysteresis | 700 mV |
| Type | Transceiver |
| Voltage - Supply (Maximum) | 5.5 V |
| Voltage - Supply (Minimum) | 4 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
