1058990-1

Active

TE Connectivity Aerospace, Defense and Marine

CONN OSMM JACK STR 50 OHM SOLDER

Search across all available documentation for this part.

Active

TE Connectivity Aerospace, Defense and Marine

CONN OSMM JACK STR 50 OHM SOLDER

Technical Specifications

Parameters and characteristics for this part

Specification	1058990-1

Body Finish	Gold
Body Material	Stainless Steel
Cable Group	Semi Rigid
Cable Group	0.047 in
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Style	OSMM
Connector Type	Female Socket, Jack
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	45 GHz
Housing Color	Gold
Impedance	50 Ohms

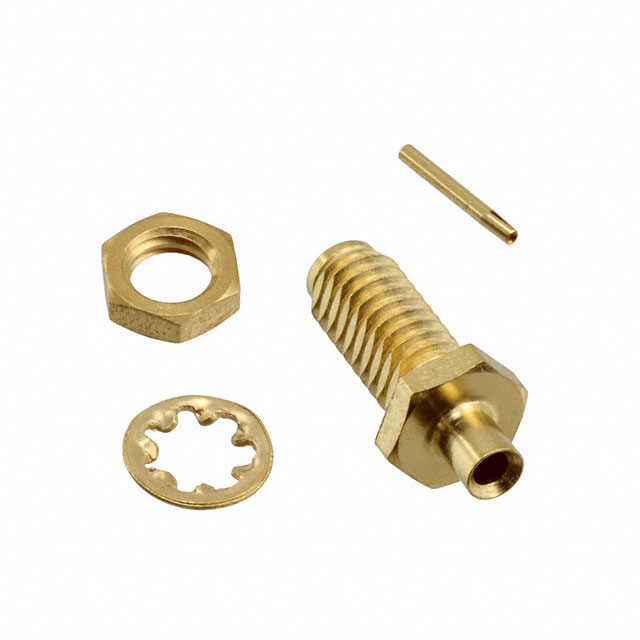

Includes	1 Lockwasher, 1 Connector, 1 Nut, 1 Contact
Mounting Feature	Bulkhead - Front Side Nut
Number of Ports	1
Shield Termination	Solder

CONN OSMM JACK STR 50 OHM SOLDER

Part	Includes	Frequency - Max [Max]	Housing Color	Cable Group	Cable Group	Body Material	Body Finish	Dielectric Material	Shield Termination	Contact Termination	Center Contact Material	Impedance	Center Contact Plating	Connector Style	Number of Ports	Connector Type	Mounting Feature
TE Connectivity Aerospace, Defense and Marine 1058990-1	1 Connector, 1 Contact, 1 Lockwasher, 1 Nut	45 GHz	Gold	Semi Rigid	0.047 in	Stainless Steel	Gold	Polytetrafluoroethylene (PTFE)	Solder	Solder	Beryllium Copper	50 Ohms	Gold	OSMM	1	Female Socket, Jack	Bulkhead - Front Side Nut

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

OSMM Connector Jack, Female Socket 50 Ohms Panel Mount Solder
