6483-48-2
ObsoletePomona Electronics

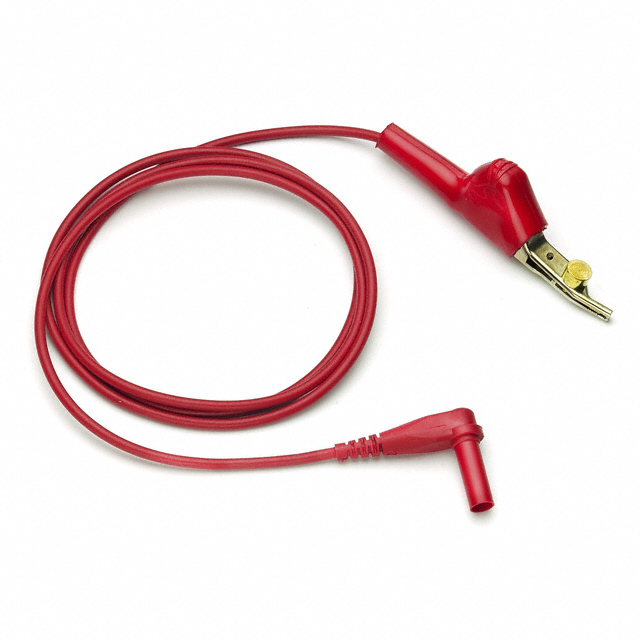

TEST LEAD BANANA TO GATOR 48"
6483-48-2
ObsoletePomona Electronics
TEST LEAD BANANA TO GATOR 48"
Description
General part information
6483-48-2
48.0" (1219.20mm) Banana Plug, Single, Sheathed, Right Angle To Alligator Clip, Insulated, 5 Way Patch Cord 30VAC, 60VDC
Technical Specifications
Parameters and characteristics for this part
| Specification | 6483-48-2 |
|---|---|
| 1st Connector | Sheathed, Right Angle, Banana Plug, Single |
| 2nd Connector | Insulated, Alligator Clip, 5 Way |
| Cable Length | 48 in |
| Configuration | Banana to Alligator |
| Contents | Red |
| Current Rating | 8 A |
| Lead Quantity | 1 |
| Material - Insulation | Silicone |
| Stacking Method | Non Stackable |
| Type | Patch Cord |
| Voltage - Rated | 60 VDC, 30 VAC |
| Wire Gauge | 18 AWG |
