AZ2150W-1AE-24DEFT
ActiveAmerican Zettler

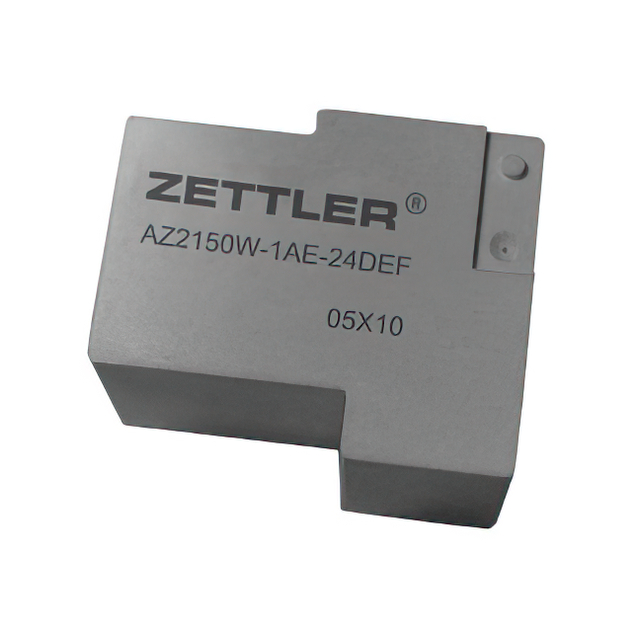

RELAY GEN PURPOSE SPST 30A 24V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
AZ2150W-1AE-24DEFT
ActiveAmerican Zettler
RELAY GEN PURPOSE SPST 30A 24V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | AZ2150W-1AE-24DEFT | AZ2150W Series |
|---|---|---|
| Approval Agency | UL, VDE, cUR | UL, VDE, cUR |
| Coil Current | 46.2 mA | 23.1 - 222.2 mA |
| Coil Insulation | Class F | Class F |
| Coil Resistance | 520 Ohms | 2.08 - 520 Ohms |
| Coil Type | Non Latching | Non Latching |
| Coil Voltage | 24 VDC | 5 - 48 VDC |
| Contact Form | SPST-NO (1 Form A) | SPST-NO (1 Form A) |
| Contact Material | Silver Tin Oxide (AgSnO) | Silver Tin Oxide (AgSnO) |
| Contact Rating (Current) | 30 A | 30 A |
| Load - Max Switching | 900 W, 8310 VA | 900 - 8310 W |
| Mounting Type | Through Hole | Through Hole |
| Must Operate Voltage | 18 VDC | 3.75 - 36 VDC |
| Must Release Voltage | 2.4 VDC | 0.5 - 4.8 VDC |
| Operate Time | 15 ms | 15 ms |
| Operating Temperature [Max] | 85 °C | 85 °C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Relay Type | General Purpose | General Purpose |
| Release Time | 10 ms | 10 ms |
| Seal Rating | Sealed - Fully | Sealed - Fully |
| Termination Style | PC Pin | PC Pin |
AZ2150W Series
RELAY GEN PURPOSE SPST 30A 5V
| Part | Mounting Type | Relay Type | Seal Rating | Contact Form | Coil Voltage | Coil Type | Must Operate Voltage | Termination Style | Operate Time | Contact Material | Must Release Voltage | Coil Insulation | Operating Temperature [Max] | Operating Temperature [Min] | Contact Rating (Current) | Approval Agency | Release Time | Load - Max Switching | Coil Current | Coil Resistance |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
American Zettler AZ2150W-1AE-5DEFT | Through Hole | General Purpose | Sealed - Fully | SPST-NO (1 Form A) | 5 VDC | Non Latching | 3.75 VDC | PC Pin | 15 ms | Silver Tin Oxide (AgSnO) | 0.5 VDC | Class F | 85 °C | -40 °C | 30 A | cUR, UL, VDE | 10 ms | 900 W, 8310 VA | 222.2 mA | 22.5 Ohms |
American Zettler AZ2150W-1AE-48DEFT | Through Hole | General Purpose | Sealed - Fully | SPST-NO (1 Form A) | 48 VDC | Non Latching | 36 VDC | PC Pin | 15 ms | Silver Tin Oxide (AgSnO) | 4.8 VDC | Class F | 85 °C | -40 °C | 30 A | cUR, UL, VDE | 10 ms | 900 W, 8310 VA | 23.1 mA | 2.08 kOhms |
American Zettler AZ2150W-1AE-12DEFT | Through Hole | General Purpose | Sealed - Fully | SPST-NO (1 Form A) | 12 VDC | Non Latching | 9 VDC | PC Pin | 15 ms | Silver Tin Oxide (AgSnO) | 1.2 VDC | Class F | 85 °C | -40 °C | 30 A | cUR, UL, VDE | 10 ms | 900 W, 8310 VA | 92.3 mA | 130 Ohms |
American Zettler AZ2150W-1AE-24DEFT | Through Hole | General Purpose | Sealed - Fully | SPST-NO (1 Form A) | 24 VDC | Non Latching | 18 VDC | PC Pin | 15 ms | Silver Tin Oxide (AgSnO) | 2.4 VDC | Class F | 85 °C | -40 °C | 30 A | cUR, UL, VDE | 10 ms | 900 W, 8310 VA | 46.2 mA | 520 Ohms |
American Zettler AZ2150W-1AE-6DF | Through Hole | General Purpose | SPST-NO (1 Form A) | Non Latching | 4.5 VDC | PC Pin | 15 ms | Silver Tin Oxide (AgSnO) | 0.6 VDC | Class F | 85 °C | -40 °C | 30 A | cUR, UL, VDE | 10 ms | 900 W, 8310 VA | 184.6 mA | 32.5 Ohms |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 2000 | $ 1.84 | |
Description
General part information
AZ2150W Series
General Purpose Relay SPST-NO (1 Form A) 24VDC Coil Through Hole
