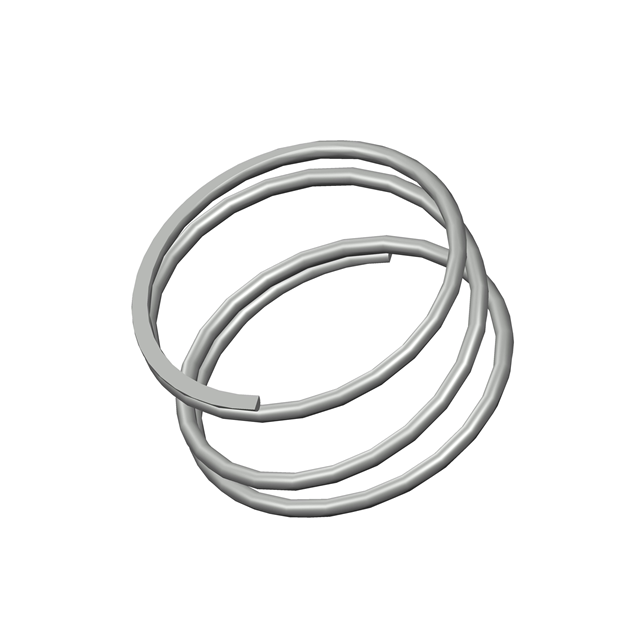

10208CS
ActiveCentury Spring Corp
COMP O=1.703,L= .88,W= .088
10208CS
ActiveCentury Spring Corp
COMP O=1.703,L= .88,W= .088
Description
General part information
10208CS
COMP O=1.703,L= .88,W= .088
Technical Specifications
Parameters and characteristics for this part
| Specification | 10208CS |
|---|---|
| Diameter - Inside | 1.527 in |
| Diameter - Outside | 1.703 in |
| End Style | Ground, Closed |
| Finish | Zinc |
| Free Length | 0.88 in |
| Material | Spring Steel |
| Rate (lbs/in) | 14 lbs/in |
| Type | Compression |
| Wire Diameter | 0.088 in |
