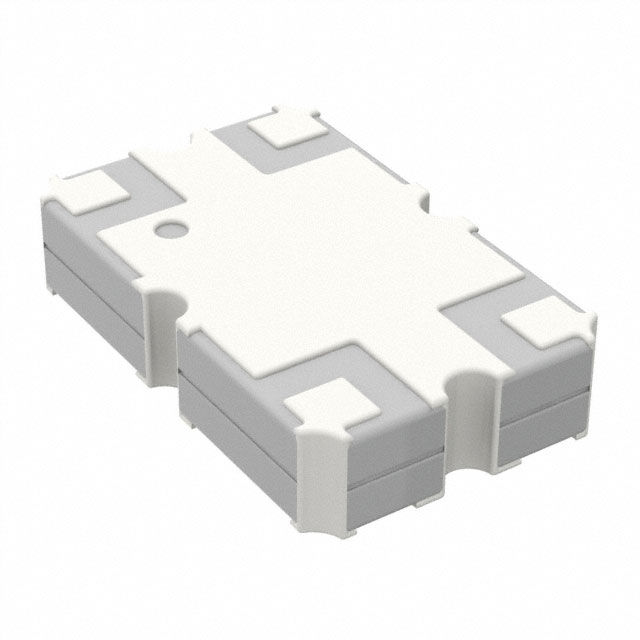

X3C25F1-03S
ActiveTTM Technologies, Inc.
RF DIR COUPLER 2.3GHZ-2.7GHZ SMD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
X3C25F1-03S
ActiveTTM Technologies, Inc.
RF DIR COUPLER 2.3GHZ-2.7GHZ SMD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | X3C25F1-03S |
|---|---|
| Applications | General Purpose |
| Coupler Type | Standard |
| Frequency [Max] | 2.7 GHz |
| Frequency [Min] | 2.3 GHz |
| Insertion Loss | 0.2 dB |
| Isolation | 26 dB |
| Package / Case | 4-SMD, No Lead |
| Power - Max [Max] | 25 W |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 3.15 | |
| 10 | $ 2.72 | |||
| 25 | $ 2.57 | |||
| 100 | $ 2.36 | |||
| 250 | $ 2.24 | |||
| 500 | $ 2.15 | |||
| 1000 | $ 2.07 | |||
| Digi-Reel® | 1 | $ 3.15 | ||
| 10 | $ 2.72 | |||
| 25 | $ 2.57 | |||
| 100 | $ 2.36 | |||
| 250 | $ 2.24 | |||
| 500 | $ 2.15 | |||
| 1000 | $ 2.07 | |||
| Tape & Reel (TR) | 4000 | $ 1.55 | ||
Description
General part information
X3C25F1-03S
RF Directional Coupler General Purpose 2.3GHz ~ 2.7GHz 25W 4-SMD, No Lead
