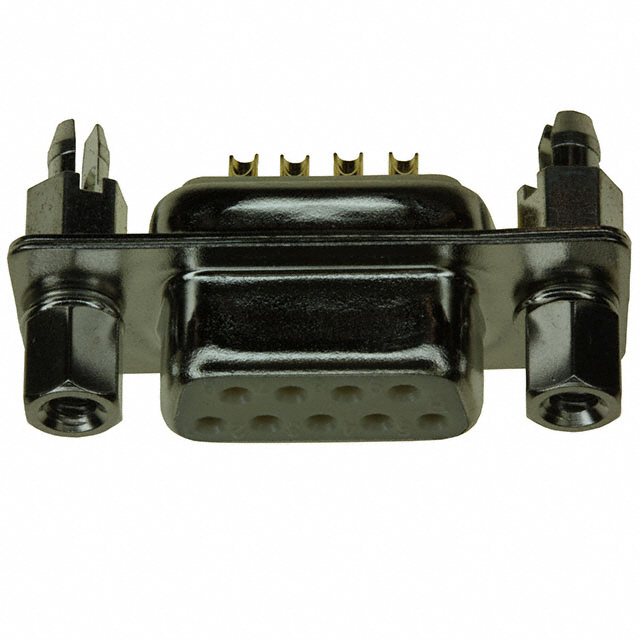

172-E09-203R911 - 172-E09-203R911

172-E09-203R911

Active
MH Connectors

D SUB CONNECTOR, DB9, RECEPTACLE, 172-E M SERIES, 9 CONTACTS, DE, SOLDER

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsBackshell Reference GuideDatasheet+4
172-E09-203R911 - 172-E09-203R911

172-E09-203R911

Active
MH Connectors

D SUB CONNECTOR, DB9, RECEPTACLE, 172-E M SERIES, 9 CONTACTS, DE, SOLDER

Deep-Dive with AI

DocumentsBackshell Reference GuideDatasheet+4

Technical Specifications

Parameters and characteristics for this part

Specification172-E09-203R911
ColorWhite
Connector StyleD-Sub
Connector TypeReceptacle, Female Sockets
Contact FinishGold
Contact Finish ThicknessFlash
Contact MaterialBrass
Contact TypeSignal
Current Rating (Amps)5 A
Dielectric MaterialPolybutylene Terephthalate (PBT)
Flange FeatureMating Side, Female Screwlock (4-40), Cable Side (4-40)
Material Flammability RatingUL94 V-0
Number of Positions9
Number of Rows2
Shell Material, FinishNickel Plated, Steel
Shell Size, Connector Layout [custom]DE, E
Shell Size, Connector Layout [custom]1
Wire Gauge [Max]26 AWG
Wire Gauge [Min]20 AWG

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyTray 1$ 5.18
10$ 4.70
25$ 4.45
40$ 4.35
90$ 4.14
270$ 3.62
450$ 3.52
990$ 3.00
2430$ 2.80
NewarkEach 100$ 4.39
500$ 3.75
1000$ 3.19
5000$ 2.86

Description

General part information

172-E09-203R911

9 Position D-Sub Receptacle, Female Sockets Connector
