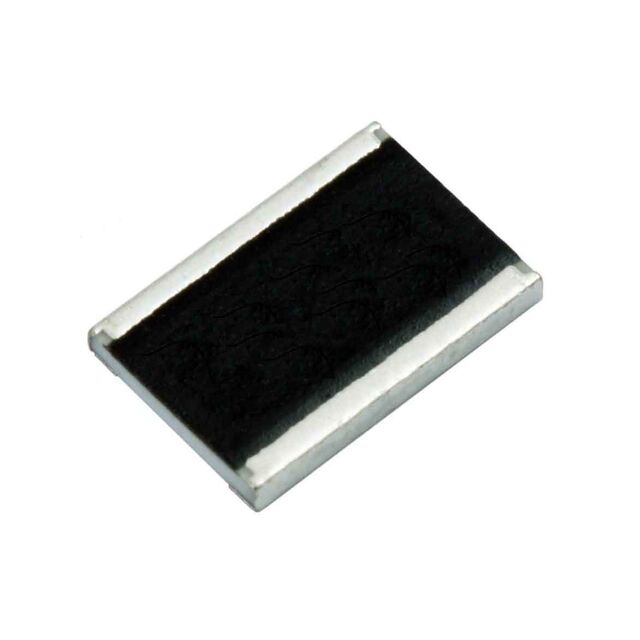

CRCW12182R49FKEKHP

Active

Vishay Dale

RES SMD 2.49 OHM 1% 1.5W 1218

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

CRCW12182R49FKEKHP

Active

Vishay Dale

RES SMD 2.49 OHM 1% 1.5W 1218

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	CRCW12182R49FKEKHP	CRCW1218 Series

Composition	Thick Film	Thick Film
Features	Automotive AEC-Q200, Pulse Withstanding	Automotive AEC-Q200, Pulse Withstanding
Height - Seated (Max)	-	0.6 mm
Height - Seated (Max)	-	0.024 in
Height - Seated (Max) [Max]	0.7 mm	0.7 mm
Height - Seated (Max) [Max]	0.028 in	0.028 in
Number of Terminations	2	2
Operating Temperature [Max]	155 °C	155 °C
Operating Temperature [Min]	-55 °C	-55 °C
Package / Case	3246 Metric, 1218	3246 Metric, 1218
Power (Watts)	1.5 W	1 - 1.5 W
Ratings	AEC-Q200	AEC-Q200
Resistance	2.49 Ohms	0 - 750000 kOhms
Size / Dimension [x]	0.122 "	0.122 "
Size / Dimension [x]	3.1 mm	3.1 mm
Size / Dimension [y]	0.181 in	0.181 in
Size / Dimension [y]	4.6 mm	4.6 mm
Supplier Device Package	1218	1218
Temperature Coefficient	100 ppm/°C	50 - 200 ppm/°C
Tolerance	1 %	1 - 5 %
Tolerance	-	Jumper

CRCW1218 Series

RES SMD 634K OHM 1% 1W 1218

...

Part	Resistance	Temperature Coefficient	Supplier Device Package	Number of Terminations	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Tolerance	Ratings	Operating Temperature [Max]	Operating Temperature [Min]	Package / Case	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Features	Composition	Power (Watts)
Vishay Dale CRCW1218634KFKEK	634 kOhms	100 ppm/°C	1218	2	0.6 mm	0.024 in	1 %	AEC-Q200	155 °C	-55 °C	1218, 3246 Metric	0.181 in	4.6 mm	0.122 "	3.1 mm	Automotive AEC-Q200	Thick Film	1 W
Vishay Dale CRCW12183K01FKEK	3.01 kOhms	100 ppm/°C	1218	2	0.6 mm	0.024 in	1 %	AEC-Q200	155 °C	-55 °C	1218, 3246 Metric	0.181 in	4.6 mm	0.122 "	3.1 mm	Automotive AEC-Q200	Thick Film	1 W
Vishay Dale CRCW121841R2FKEK	41.2 Ohms	100 ppm/°C	1218	2	0.6 mm	0.024 in	1 %	AEC-Q200	155 °C	-55 °C	1218, 3246 Metric	0.181 in	4.6 mm	0.122 "	3.1 mm	Automotive AEC-Q200	Thick Film	1 W
Vishay Dale CRCW12187K50FKTK	7.5 kOhms	100 ppm/°C	1218	2	0.6 mm	0.024 in	1 %	AEC-Q200	155 °C	-55 °C	1218, 3246 Metric	0.181 in	4.6 mm	0.122 "	3.1 mm	Automotive AEC-Q200	Thick Film	1 W
Vishay Dale CRCW12188K06FKEK	8.06 kOhms	100 ppm/°C	1218	2	0.6 mm	0.024 in	1 %	AEC-Q200	155 °C	-55 °C	1218, 3246 Metric	0.181 in	4.6 mm	0.122 "	3.1 mm	Automotive AEC-Q200	Thick Film	1 W
Vishay Dale CRCW12186R34FKEK	6.34 Ohms	100 ppm/°C	1218	2	0.6 mm	0.024 in	1 %	AEC-Q200	155 °C	-55 °C	1218, 3246 Metric	0.181 in	4.6 mm	0.122 "	3.1 mm	Automotive AEC-Q200	Thick Film	1 W
Vishay Dale CRCW12181M91FKEK	1.91 MOhms	100 ppm/°C	1218	2	0.6 mm	0.024 in	1 %	AEC-Q200	155 °C	-55 °C	1218, 3246 Metric	0.181 in	4.6 mm	0.122 "	3.1 mm	Automotive AEC-Q200	Thick Film	1 W
Vishay Dale CRCW12183R30FNEK	3.3 Ohms	200 ppm/°C	1218	2	0.6 mm	0.024 in	1 %	AEC-Q200	155 °C	-55 °C	1218, 3246 Metric	0.181 in	4.6 mm	0.122 "	3.1 mm	Automotive AEC-Q200	Thick Film	1 W
Vishay Dale CRCW12181K07FKEK	1.07 kOhms	100 ppm/°C	1218	2	0.6 mm	0.024 in	1 %	AEC-Q200	155 °C	-55 °C	1218, 3246 Metric	0.181 in	4.6 mm	0.122 "	3.1 mm	Automotive AEC-Q200	Thick Film	1 W
Vishay Dale CRCW12184R22FKEK	4.22 Ohms	100 ppm/°C	1218	2	0.6 mm	0.024 in	1 %	AEC-Q200	155 °C	-55 °C	1218, 3246 Metric	0.181 in	4.6 mm	0.122 "	3.1 mm	Automotive AEC-Q200	Thick Film	1 W

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	4000	$ 0.76

Description

General part information

CRCW1218 Series

2.49 Ohms ±1% 1.5W Chip Resistor 1218 (3246 Metric) Automotive AEC-Q200, Pulse Withstanding Thick Film
