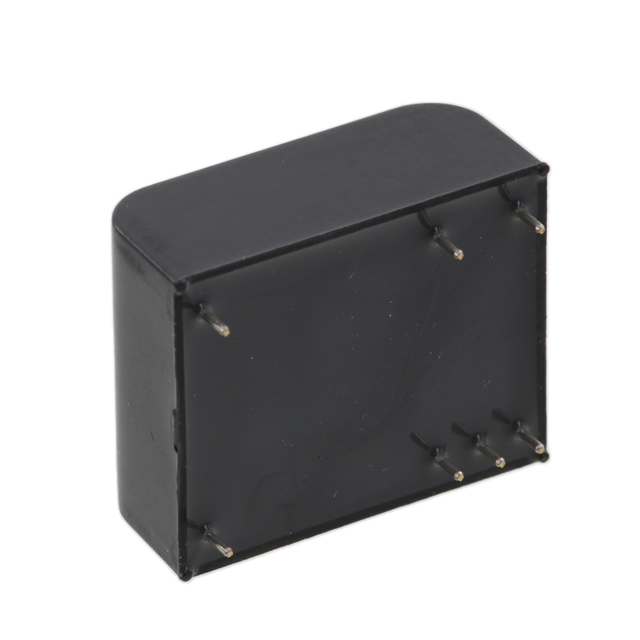

BPSX 2-08-50

Active

Cita Technologies, LLC.

AC/DC CONVERTER 8V 5V 3.3W

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

BPSX 2-08-50

Active

Cita Technologies, LLC.

AC/DC CONVERTER 8V 5V 3.3W

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1	$ 10.71
		5	$ 10.56
		20	$ 10.40
		40	$ 9.49
		100	$ 9.18
		260	$ 8.87
		500	$ 8.57

Description

General part information

BPSX 2 Series

Enclosed AC DC Converters 2 Output 8V 250mA, 250mA 85 ~ 265 VAC Input

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	BPSX 2-08-50	BPSX 2 Series

Applications	ITE (Commercial)	ITE (Commercial)
Approval Agency	CB, cURus	CB, cURus
Current - Output (Max)	250 mA	250 mA
Current - Output (Max)	250 mA	70 - 250 mA
Efficiency	70 %	70 %
Features	Universal Input	Universal Input
Mounting Type	Through Hole	Through Hole
Number of Outputs	2	1 - 2
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-40 °C	-40 °C
Package / Case	7-DIP Module	7-DIP Module
Power (Watts)	3.3 W	1.5 - 3.3 W
Size / Dimension [x]	1.35 "	1.35 "
Size / Dimension [x]	34.2 mm	34.2 mm
Size / Dimension [y]	28.4 mm	28.4 mm
Size / Dimension [y]	1.12 in	1.12 in
Size / Dimension [z]	14.8 mm	14.8 mm
Size / Dimension [z]	0.58 "	0.58 "
Type	Enclosed	Enclosed
Voltage - Input [Max]	265 VAC	265 VAC
Voltage - Input [Min]	85 VAC	85 VAC
Voltage - Output 1	8 V	8 - 14 V

BPSX 2 Series

AC/DC CONVERTER 8V 2W

Part	Operating Temperature [Max]	Operating Temperature [Min]	Approval Agency	Efficiency	Mounting Type	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Applications	Voltage - Output 1	Package / Case	Type	Features	Number of Outputs	Voltage - Input [Min]	Voltage - Input [Max]	Current - Output (Max)	Current - Output (Max)	Power (Watts)
Cita Technologies, LLC. BPSX 2-08-00	85 °C	-40 °C	CB, cURus	70 %	Through Hole	28.4 mm	1.35 "	1.12 in	14.8 mm	0.58 "	34.2 mm	ITE (Commercial)	8 V	7-DIP Module	Enclosed	Universal Input	1	85 VAC	265 VAC
Cita Technologies, LLC. BPSX 2-08-50	85 °C	-40 °C	CB, cURus	70 %	Through Hole	28.4 mm	1.35 "	1.12 in	14.8 mm	0.58 "	34.2 mm	ITE (Commercial)	8 V	7-DIP Module	Enclosed	Universal Input	2	85 VAC	265 VAC	250 mA	250 mA	3.3 W
Cita Technologies, LLC. BPSX 2-14-33	85 °C	-40 °C	CB, cURus	70 %	Through Hole	28.4 mm	1.35 "	1.12 in	14.8 mm	0.58 "	34.2 mm	ITE (Commercial)	14 V	7-DIP Module	Enclosed	Universal Input	2	85 VAC	265 VAC		70 mA, 143 mA	1.5 W
Cita Technologies, LLC. BPSX 2-14-50	85 °C	-40 °C	CB, cURus	70 %	Through Hole	28.4 mm	1.35 "	1.12 in	14.8 mm	0.58 "	34.2 mm	ITE (Commercial)	14 V	7-DIP Module	Enclosed	Universal Input	2	85 VAC	265 VAC		83 mA, 143 mA	1.9 W
Cita Technologies, LLC. BPSX 2-08-33	85 °C	-40 °C	CB, cURus	70 %	Through Hole	28.4 mm	1.35 "	1.12 in	14.8 mm	0.58 "	34.2 mm	ITE (Commercial)	8 V	7-DIP Module	Enclosed	Universal Input	2	85 VAC	265 VAC		160 mA, 250 mA	2.1 W
Cita Technologies, LLC. BPSX 2-14-00	85 °C	-40 °C	CB, cURus	70 %	Through Hole	28.4 mm	1.35 "	1.12 in	14.8 mm	0.58 "	34.2 mm	ITE (Commercial)	14 V	7-DIP Module	Enclosed	Universal Input	1	85 VAC	265 VAC
