1-111504-8
ActiveTE Connectivity AMP Connectors

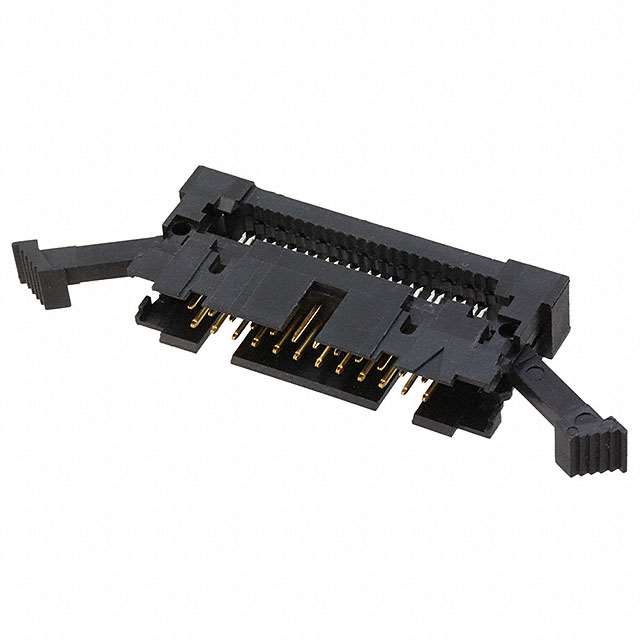

CONN PLUG 24P IDC 26-28AWG GOLD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
1-111504-8
ActiveTE Connectivity AMP Connectors
CONN PLUG 24P IDC 26-28AWG GOLD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 1-111504-8 | 111504 Series |
|---|---|---|
| Cable Termination | IDC | IDC |
| Color | Black | Black |
| Connector Type | Plug | Plug |
| Contact Finish | Gold | Gold |
| Contact Finish Thickness | 0.76 Ám | 0.76 Ám |
| Contact Finish Thickness | 30 Áin | 30 Áin |
| Contact Type | Male Pin | Male Pin |
| Fastening Type | Latch Lock/Eject Hooks | Latch Lock/Eject Hooks |
| Features | Feed Through | Feed Through |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Number of Positions | 24 | 10 - 24 |
| Number of Positions | - | 16 |
| Number of Rows | 2 | 2 |
| Pitch [x] | 2.54 mm | 2.54 mm |
| Pitch [x] | 0.1 in | 0.1 in |
| Row Spacing | 2.54 mm | 2.54 mm |
| Row Spacing [x] | 0.1 in | 0.1 in |
| Wire Type | Ribbon Cable | Ribbon Cable |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 17.02 | |
| 10 | $ 14.46 | |||
| 40 | $ 13.39 | |||
111504 Series
CONN PLUG 10P IDC 26-28AWG GOLD
| Part | Contact Finish Thickness | Contact Finish Thickness | Row Spacing [x] | Row Spacing | Contact Finish | Contact Type | Connector Type | Features | Number of Rows | Fastening Type | Number of Positions | Pitch [x] | Pitch [x] | Color | Cable Termination | Wire Type | Mounting Type | Number of Positions |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 1-111504-4 | 0.76 Ám | 30 Áin | 0.1 in | 2.54 mm | Gold | Male Pin | Plug | Feed Through | 2 | Latch Lock/Eject Hooks | 10 | 2.54 mm | 0.1 in | Black | IDC | Ribbon Cable | Free Hanging (In-Line) | |
TE Connectivity AMP Connectors 1-111504-8 | 0.76 Ám | 30 Áin | 0.1 in | 2.54 mm | Gold | Male Pin | Plug | Feed Through | 2 | Latch Lock/Eject Hooks | 24 | 2.54 mm | 0.1 in | Black | IDC | Ribbon Cable | Free Hanging (In-Line) | |
TE Connectivity AMP Connectors 1-111504-5 | 0.76 Ám | 30 Áin | 0.1 in | 2.54 mm | Gold | Male Pin | Plug | Feed Through | 2 | Latch Lock/Eject Hooks | 14 | 2.54 mm | 0.1 in | Black | IDC | Ribbon Cable | Free Hanging (In-Line) | |
TE Connectivity AMP Connectors 1-111504-6 | 0.76 Ám | 30 Áin | 0.1 in | 2.54 mm | Gold | Male Pin | Plug | Feed Through | 2 | Latch Lock/Eject Hooks | 2.54 mm | 0.1 in | Black | IDC | Ribbon Cable | Free Hanging (In-Line) | 16 |
Description
General part information
111504 Series
24 Position Rectangular Plug Connector IDC Gold 26-28 AWG
Documents
Technical documentation and resources
