13050200

Active

Bopla Enclosures

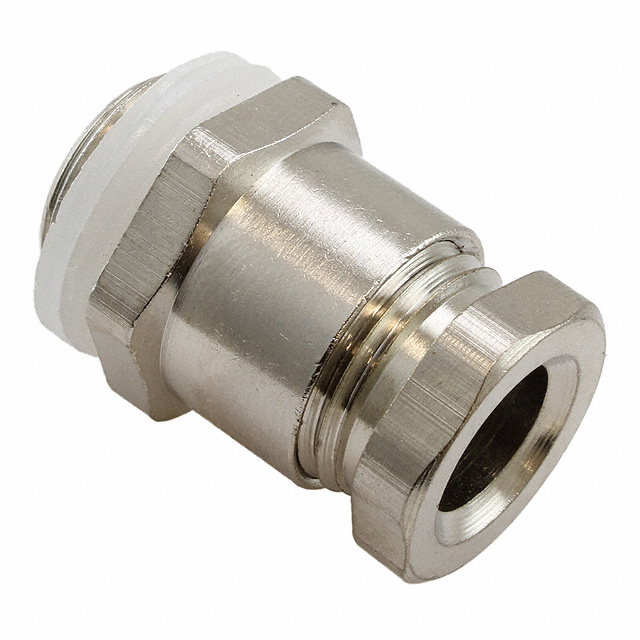

CABLE GLAND 6-8MM PG9 BRASS

Search across all available documentation for this part.

Active

Bopla Enclosures

CABLE GLAND 6-8MM PG9 BRASS

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	13050200	13050 Series

Color	Silver	Silver
Ingress Protection	IP65 - Dust Tight, Water Resistant	IP65 - Dust Tight, Water Resistant
Material	Brass	Brass
Operating Temperature [Max]	100 °C	100 °C
Operating Temperature [Min]	-20 C	-20 C
Outside Cable Diameter (Max)	-	14 - 24 mm
Outside Cable Diameter (Max)	-	0.551 - 0.945 in
Outside Cable Diameter (Max) [Max] [diameter]	8 mm	6 - 18.01 mm
Outside Cable Diameter (Max) [Max] [diameter]	0.315 in	0.236 - 0.709 "
Outside Cable Diameter (Min)	-	0.157 in
Outside Cable Diameter (Min)	-	4 mm
Outside Cable Diameter (Min) [Min] [diameter]	6 mm	6 - 18.01 mm
Outside Cable Diameter (Min) [Min] [diameter]	0.236 in	0.236 - 0.709 in
Thread Size	PG9	PG11, PG21, PG7, PG29, PG16, PG9, PG13.5
Type	Cable Gland	Cable Gland

CABLE GLAND 8-10MM PG11 BRASS

Part	Color	Outside Cable Diameter (Min) [Min] [diameter]	Outside Cable Diameter (Min) [Min] [diameter]	Ingress Protection	Type	Outside Cable Diameter (Max) [Max] [diameter]	Outside Cable Diameter (Max) [Max] [diameter]	Operating Temperature [Max]	Operating Temperature [Min]	Thread Size	Material	Outside Cable Diameter (Min) [Min]	Outside Cable Diameter (Min) [Min]	Outside Cable Diameter (Max) [Max]	Outside Cable Diameter (Max) [Max]
Bopla Enclosures 13050300	Silver	8 mm	0.315 in	IP65 - Dust Tight, Water Resistant	Cable Gland	0.394 "	10 mm	100 °C	-20 C	PG11	Brass
Bopla Enclosures 13050600	Silver	14 mm	0.551 in	IP65 - Dust Tight, Water Resistant	Cable Gland	0.709 in	18.01 mm	100 °C	-20 C	PG21	Brass
Bopla Enclosures 13050100	Silver			IP65 - Dust Tight, Water Resistant	Cable Gland	0.236 in	6 mm	100 °C	-20 C	PG7	Brass	0.157 in	4 mm
Bopla Enclosures 13050700	Silver	18.01 mm	0.709 in	IP65 - Dust Tight, Water Resistant	Cable Gland			100 °C	-20 C	PG29	Brass			24 mm	0.945 in
Bopla Enclosures 13050500	Silver	12 mm	0.472 in	IP65 - Dust Tight, Water Resistant	Cable Gland			100 °C	-20 C	PG16	Brass			14 mm	0.551 "
Bopla Enclosures 13050200	Silver	6 mm	0.236 in	IP65 - Dust Tight, Water Resistant	Cable Gland	0.315 in	8 mm	100 °C	-20 C	PG9	Brass
Bopla Enclosures 13050400	Silver	10 mm	0.394 in	IP65 - Dust Tight, Water Resistant	Cable Gland	0.472 in	12 mm	100 °C	-20 C	PG13.5	Brass

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Cable Gland Brass PG9 Silver
