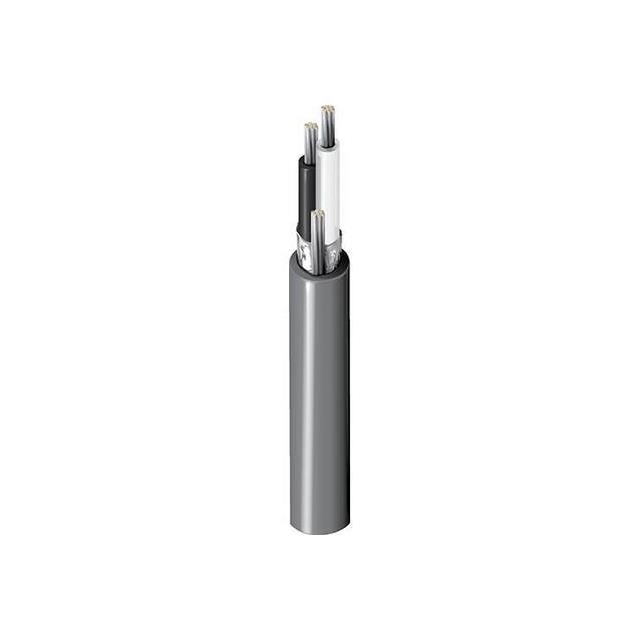

8442ZH 010500

Active

Belden Inc.

CABLE 2COND 22AWG BLACK

Search across all available documentation for this part.

Active

Belden Inc.

CABLE 2COND 22AWG BLACK

Technical Specifications

Parameters and characteristics for this part

Specification	8442ZH 010500

Cable Type	Multi-Conductor
Conductor Insulation	Polypropylene (PP)
Conductor Material	Copper, Tinned
Conductor Strand [custom]	7
Conductor Strand [custom]	30 AWG
Jacket (Insulation) Diameter [diameter]	4.27 mm
Jacket (Insulation) Diameter [diameter]	0.168 in
Jacket (Insulation) Thickness	0.025 in
Jacket (Insulation) Thickness	0.635 mm
Jacket Color	Black
Length [x]	500 '
Length [x]	152.4 m
Number of Conductors	2
Voltage	300 V
Wire Gauge	22 AWG

Part	Jacket Color	Conductor Material	Conductor Insulation	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Length [x]	Length [x]	Voltage	Conductor Strand [custom]	Conductor Strand [custom]	Wire Gauge	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Number of Conductors	Cable Type
Belden Inc. 8442ZH 010500	Black	Copper Tinned	Polypropylene (PP)	0.025 in	0.635 mm	500 '	152.4 m	300 V	7	30 AWG	22 AWG	4.27 mm	0.168 in	2	Multi-Conductor

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

2 (1 Pair) Conductor Multi-Conductor Cable Black 22 AWG 500.0' (152.4m)
