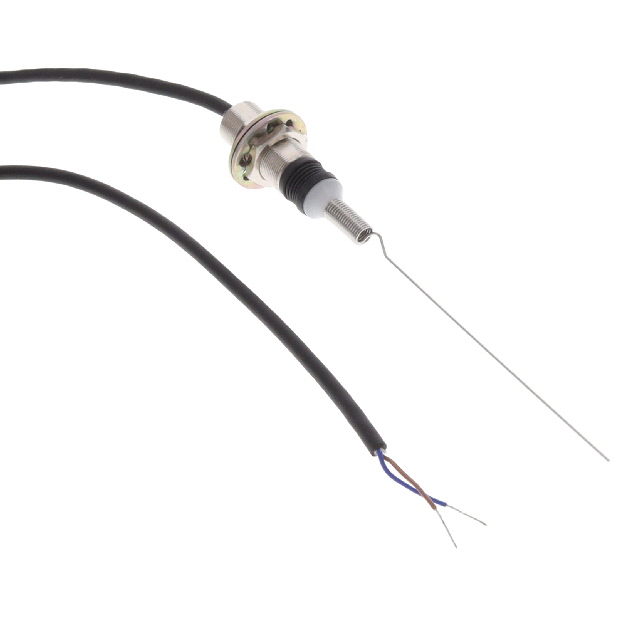

D5B-1515
ActiveOmron Automation and Safety
SWITCH SNP ACT SPST-NC 0.03A 30V
D5B-1515
ActiveOmron Automation and Safety
SWITCH SNP ACT SPST-NC 0.03A 30V
Description
General part information
D5B-1515
Switch SPST-NC Panel Mount
Technical Specifications
Parameters and characteristics for this part
| Specification | D5B-1515 |
|---|---|
| Actuator Type | Wire, Spring |
| Cable Length | 5 m |
| Circuit | SPST-NC |
| Current Rating | 30 mA |
| Electrical Life (Cycles) | 5000000 Cycles |
| Features | Cable Length |
| Ingress Protection Description | Waterproof, Dust Tight |
| Ingress Protection IP Rating | IP67 |
| Mechanical Life (Cycles) | 10000000 Cycles |
| Mounting Type | Panel Mount |
| Operating Force | 5 gf |
| Operating Temperature (Max) | 70 °C |
| Operating Temperature (Min) | -10 °C |
| Pretravel (Length) | 0.551 in |
| Switch Function | On-Mom |
| Termination Style | Cable Leads |
| Voltage Rating - DC | 30 V |
