ADBJ20-E1-BJ379

Active

Cinch Connectivity Solutions Trompeter

CONN ADAPT BNC JACK TO TRT JACK

Search across all available documentation for this part.

Active

Cinch Connectivity Solutions Trompeter

CONN ADAPT BNC JACK TO TRT JACK

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

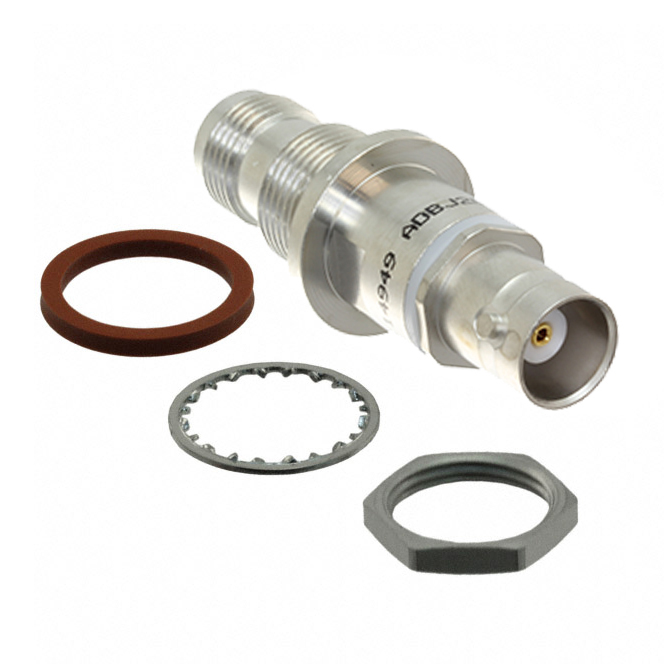

Adapter Coaxial Connector BNC Jack, Female Socket To TRT Twinaxial/Triaxial Jack, Female Socket 50 Ohms

Technical documentation and resources

No documents available

Parameters and characteristics commom to parts in this series

Specification	ADBJ20-E1-BJ379	ADBJ20-E1 Series

Adapter Series	BNC to TRT Twinaxial/Triaxial	BNC to TRB Twinaxial/Triaxial, BNC to TRT Twinaxial/Triaxial
Adapter Type	Jack to Jack	Plug to Jack, Jack to Jack
Body Finish	Nickel	Nickel
Center Gender	Female to Female	Female to Female
Conversion Type	Between Series	Between Series
Convert From (Adapter End)	BNC Jack, Female Socket	BNC Jack, Female Socket
Convert To (Adapter End)	TRT Twinaxial/Triaxial Jack, Female Socket	TRB Twinaxial/Triaxial (Concentric) Jack, Female Socket, TRT Twinaxial/Triaxial Jack, Female Socket
Fastening Type	Bayonet Lock, Threaded	Bayonet Lock, Threaded
Features	-	Three Lug
Impedance	50 Ohms	50 Ohms
Mounting Feature	Bulkhead	Bulkhead
Mounting Type	-	Free Hanging (In-Line)
Style	Straight	Straight

CONN ADAPT BNC JACK TO TRB PLUG

Part	Fastening Type	Style	Conversion Type	Body Finish	Mounting Type	Adapter Type	Convert From (Adapter End)	Adapter Series	Mounting Feature	Center Gender	Features	Impedance	Convert To (Adapter End)
Cinch Connectivity Solutions Trompeter ADBJ20-E1-PL74	Bayonet Lock	Straight	Between Series	Nickel	Free Hanging (In-Line)	Plug to Jack	BNC Jack, Female Socket	BNC to TRB Twinaxial/Triaxial
Cinch Connectivity Solutions Trompeter ADBJ20-E1-BJ79	Bayonet Lock	Straight	Between Series	Nickel		Jack to Jack	BNC Jack, Female Socket	BNC to TRB Twinaxial/Triaxial	Bulkhead	Female to Female	Three Lug	50 Ohms	TRB Twinaxial/Triaxial (Concentric) Jack, Female Socket
Cinch Connectivity Solutions Trompeter ADBJ20-E1-PL75	Bayonet Lock	Straight	Between Series	Nickel	Free Hanging (In-Line)	Plug to Jack	BNC Jack, Female Socket	BNC to TRB Twinaxial/Triaxial			Three Lug	50 Ohms
Cinch Connectivity Solutions Trompeter ADBJ20-E1-BJ379	Bayonet Lock, Threaded	Straight	Between Series	Nickel		Jack to Jack	BNC Jack, Female Socket	BNC to TRT Twinaxial/Triaxial	Bulkhead	Female to Female		50 Ohms	TRT Twinaxial/Triaxial Jack, Female Socket
