Description
General part information

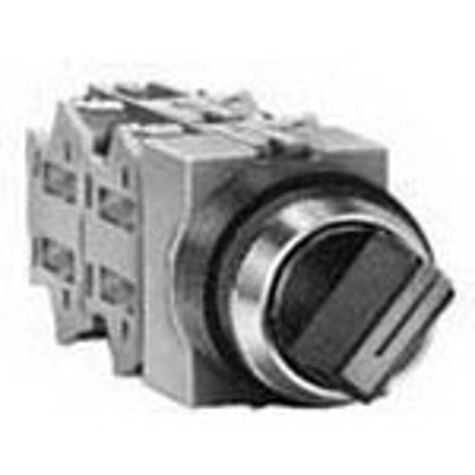

ASS302N
CONTROL SWITCHES TWS
Technical Specifications
Parameters and characteristics for this part
| Specification | ASS302N |
|---|---|
| Circuit | DPST-NC |
| Current Rating | 10 A |
| Illumination | Non-Illuminated |
| Ingress Protection Description | Dust Tight, Water Resistant |
| Ingress Protection IP Rating | IP65 |
| Number of Positions | 3 |
| Operating Temperature (Max) | 50 °C |
| Operating Temperature (Min) | -25 °C |
| Panel Cutout Diameter | 25.5 mm |
| Panel Cutout Shape | Circular |
| Switch Function | On-Mom |
| Termination Style | Screw Terminal |
| Type | Standard |
| Voltage Rating - AC | 110 V |
| Voltage Rating - DC | 24 V |
