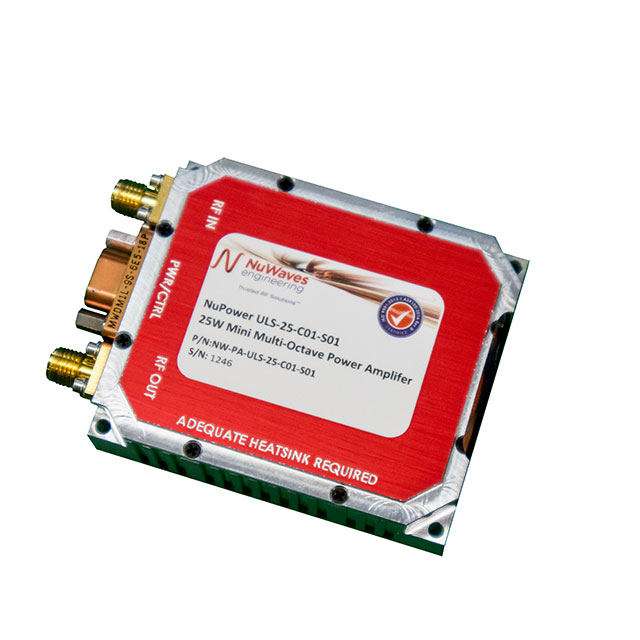

NW-PA-ULS-25-C01-S01
ActiveNuWaves RF Solutions
IC RF AMP GPS 200MHZ-2.6GHZ
NW-PA-ULS-25-C01-S01
ActiveNuWaves RF Solutions
IC RF AMP GPS 200MHZ-2.6GHZ
Description
General part information
NW-PA-ULS-25-C01-S01
RF Amplifier IC General Purpose 200MHz ~ 2.6GHz
Technical Specifications
Parameters and characteristics for this part
| Specification | NW-PA-ULS-25-C01-S01 |
|---|---|
| Current - Supply | 2 A |
| Frequency Range 1 (Max) | 2.6 GHz |
| Frequency Range 1 (Min) | 200 MHz |
| Gain | 48 dB |
| P1dB | 32 dBm |
| Package / Case | Module, SMA Connectors |
| RF Type | General Purpose |
| Test Frequency | 2.6 GHz, 200 MHz |
| Voltage - Supply (Maximum) | 32 V |
| Voltage - Supply (Minimum) | 11 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
