Part	Type	Switch Function	Color - Actuator/Cap	Actuator Type	Quick Connect Size (0.110")	Termination Style	Ingress Protection	Voltage Rating - AC	Current Rating	Actuator Marking	Circuit	Illumination Type	Color	Mounting Type	Illumination Voltage (Nominal)	Panel Cutout Diameter	Panel Cutout Shape	Operating Temperature (Min)	Operating Temperature (Max)	Electrical Life (Cycles)	Mechanical Life (Cycles)	Accessory Type	For Use With/Related Products	Compatible Series	Contact Rating (Current)	Requires	Panel Cutout Dimension	Illumination	Size Length	Size Height	Size Width	Switch Type	Shape
Omron Automation and Safety A16L-JWM-24D-1	Illuminated Standard	On-Mom	White	Button Rectangular	0.11 in	Quick Connect Solder	IP40	125 V	5 A	No Marking	SPDT	LED	White	Front Panel Mount	24 V	16 mm	Circular	-10 °C	55 °C	100000 Cycles	2000000 Cycles

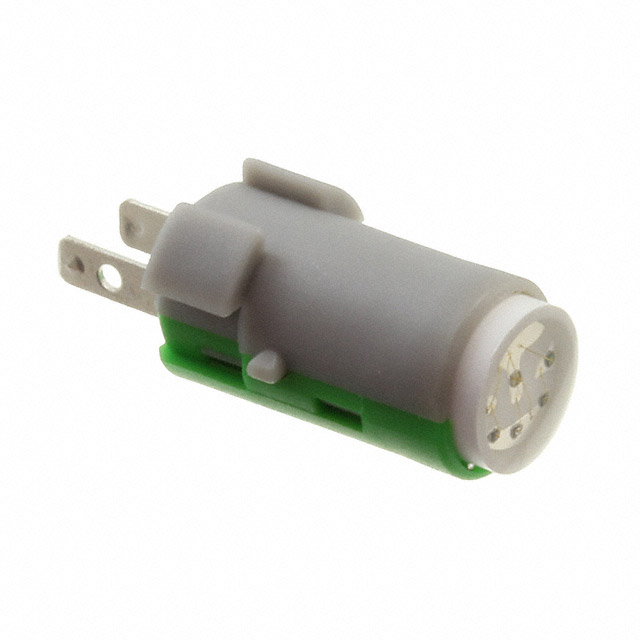

Omron Automation and Safety A16-12DSW																						LED	A16 Series
Omron Automation and Safety A16L-W-5D-2					0.11 in	Quick Connect Solder					DPDT													A16 Omron	5 A	Switch Body
Omron Automation and Safety A16-TWM	Momentary			Pushbutton Round													Round							A16 Omron		Contact Block(s)	16 mm	Non-Illuminated
Omron Automation and Safety A16L-AWM-24D-1	Illuminated Standard	On-Mom	White	Button Square	0.11 in	Quick Connect Solder	IP40	125 V	5 A	No Marking	SPDT	LED	White	Front Panel Mount	24 V	16 mm	Circular	-10 °C	55 °C	100000 Cycles	2000000 Cycles
Omron Automation and Safety A16L-JPYM-24D-1	Illuminated Standard	On-Mom	Yellow	Button Rectangular	0.11 in	Quick Connect Solder	IP40	125 V	5 A	No Marking	SPDT	LED	Yellow	Front Panel Mount	24 V	16 mm	Circular	-10 °C	55 °C	100000 Cycles	2000000 Cycles
Omron Automation and Safety A16L-R-24D-2					0.11 in	Quick Connect Solder					DPDT													A16 Omron	5 A	Switch Body
Omron Automation and Safety A16L-JRA-12D-1	Illuminated Standard	On-On	Red	Button Rectangular	0.11 in	Quick Connect Solder	IP40	125 V	5 A	No Marking	SPDT	LED	Red	Front Panel Mount	12 V	16 mm	Circular	-10 °C	55 °C	100000 Cycles	200000 Cycles
Omron Automation and Safety A16ZA-5101R													Red	Snap Fit									A16 Series					Illumination Optional	15.1 mm	3.5 mm	15.1 mm	Pushbutton	Square
Omron Automation and Safety A16L-TWM-12D-1	Illuminated Standard	On-Mom	White	Button Round	0.11 in	Quick Connect Solder	IP40	125 V	5 A	No Marking	SPDT	LED	White	Front Panel Mount	12 V	16 mm	Circular	-10 °C	55 °C	100000 Cycles	2000000 Cycles
