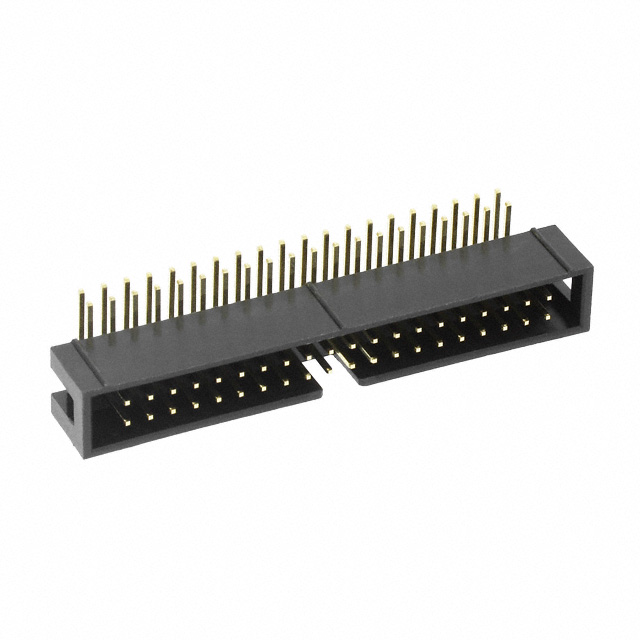

30340-5002HB

Active

CONN HEADER R/A 40POS 2.54MM

Search across all available documentation for this part.

Active

CONN HEADER R/A 40POS 2.54MM

Technical Specifications

Parameters and characteristics for this part

Specification	30340-5002HB

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Gold
Contact Finish Thickness - Mating	Flash
Contact Finish Thickness - Post	Flash
Contact Length - Mating	6 mm
Contact Length - Mating	0.236 in
Contact Length - Post	2.79 mm
Contact Length - Post [x]	0.11 in
Contact Material	Brass
Contact Shape	Square
Contact Type	Male Pin
Fastening Type	Push-Pull
Features	Keying Slot
Insulation Color	Black
Insulation Height	8.4 mm
Insulation Height	0.331 in
Insulation Material	Polybutylene Terephthalate (PBT), Polyester, Glass Filled
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle
Number of Positions	40
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Row Spacing - Mating [x]	2.54 mm
Row Spacing - Mating [x]	0.1 in
Shrouding	Shrouded - 4 Wall
Style	Board to Board, Cable
Termination	Solder

CONN HEADER R/A 40POS 2.54MM

Part	Number of Positions Loaded	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Number of Positions	Contact Finish - Mating	Contact Length - Post [x]	Contact Length - Post	Pitch - Mating	Pitch - Mating	Insulation Height	Insulation Height	Operating Temperature [Max]	Operating Temperature [Min]	Connector Type	Contact Length - Mating	Contact Length - Mating	Number of Rows	Fastening Type	Contact Finish Thickness - Post	Shrouding	Material Flammability Rating	Mounting Type	Termination	Insulation Material	Contact Finish Thickness - Mating	Insulation Color	Style	Contact Type	Contact Material	Contact Shape	Features	Contact Finish - Post
3M 30340-5002HB	All	2.54 mm	0.1 in	40	Gold	0.11 in	2.79 mm	0.1 in	2.54 mm	8.4 mm	0.331 in	105 ░C	-55 °C	Header	6 mm	0.236 in	2	Push-Pull	Flash	Shrouded - 4 Wall	UL94 V-0	Through Hole, Right Angle	Solder	Glass Filled, Polybutylene Terephthalate (PBT), Polyester	Flash	Black	Board to Board, Cable	Male Pin	Brass	Square	Keying Slot	Gold

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Connector Header Through Hole, Right Angle 40 position 0.100" (2.54mm)
