Active

Amphenol Sine Systems Corp

MALE CABLE CONNECTOR WITH INTERN

Search across all available documentation for this part.

Active

Amphenol Sine Systems Corp

MALE CABLE CONNECTOR WITH INTERN

Technical Specifications

Parameters and characteristics for this part

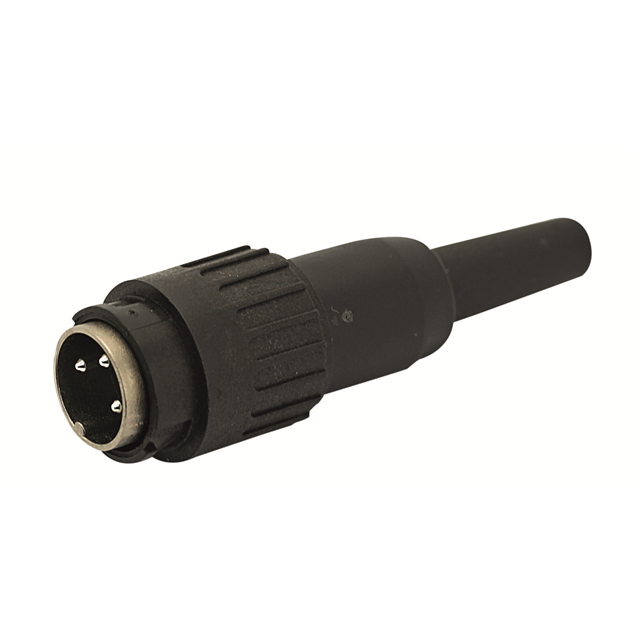

Specification	T 3629 501

Applications	Marine, Industrial, Medical, Instrumentation, Testing Equipment & Measurement
Cable Opening [diameter]	6 mm, 4 mm
Cable Opening [diameter]	0.236 in, 0.157 in
Color	Black
Connector Type	Plug, Male Pins
Contact Finish - Mating	Silver
Current Rating (Amps)	3 A
Fastening Type	Bayonet Lock
Features	Coupling Nut, Backshell, Cable Clamp, Strain Relief
Ingress Protection	IP40
Insert Material	Thermoplastic
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Number of Positions	12
Operating Temperature [Max]	100 °C
Operating Temperature [Min]	-40 °C
Orientation	Keyed
Primary Material	Metal
Shell Finish	Nickel
Shell Material	Zinc Die Cast
Shell Size - Insert	M16-12
Shielding	Unshielded
Voltage Rating	60 VDC

Part	Insert Material	Applications	Primary Material	Features	Material Flammability Rating	Contact Finish - Mating	Ingress Protection	Current Rating (Amps)	Shielding	Operating Temperature [Max]	Operating Temperature [Min]	Shell Size - Insert	Number of Positions	Fastening Type	Shell Finish	Connector Type	Color	Orientation	Mounting Type	Cable Opening [diameter]	Cable Opening [diameter]	Shell Material	Voltage Rating
Amphenol Sine Systems Corp T 3629 518	Thermoplastic	Industrial Instrumentation Marine Medical Testing Equipment & Measurement	Metal	Backshell Cable Clamp Coupling Nut Strain Relief	UL94 V-0	Gold	IP40	3 A	Unshielded	100 °C	-40 °C	M16-12	12	Bayonet Lock	Nickel	Male Pins Plug	Black	Keyed	Free Hanging (In-Line)	4 mm 6 mm	0.157 in 0.236 in	Zinc Die Cast	60 VDC
Amphenol Sine Systems Corp T 3629 501	Thermoplastic	Industrial Instrumentation Marine Medical Testing Equipment & Measurement	Metal	Backshell Cable Clamp Coupling Nut Strain Relief	UL94 V-0	Silver	IP40	3 A	Unshielded	100 °C	-40 °C	M16-12	12	Bayonet Lock	Nickel	Male Pins Plug	Black	Keyed	Free Hanging (In-Line)	4 mm 6 mm	0.157 in 0.236 in	Zinc Die Cast	60 VDC

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

12 Position Circular Connector Plug, Male Pins Solder Cup
