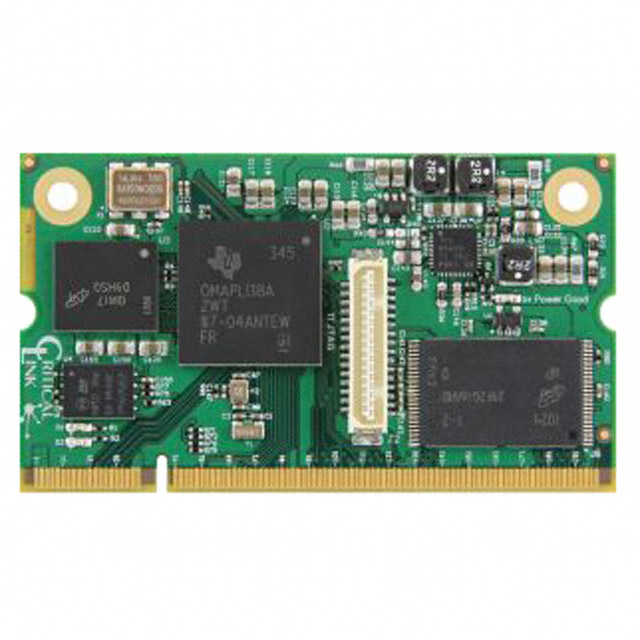

L138-FX-225-RC
ObsoleteCritical Link LLC
IC MOD ARM926EJ-S 456MHZ 8KB
L138-FX-225-RC
ObsoleteCritical Link LLC
IC MOD ARM926EJ-S 456MHZ 8KB
Description
General part information
L138-FX-225-RC
MityDSP-L138 Embedded Module ARM926EJ-S, OMAP-L138 TMS320C674x (DSP) 456MHz 8KB (Internal MPU), 256KB (Internal DSP), 128MB (External) 256MB (NAND), 8MB (NOR)
Technical Specifications
Parameters and characteristics for this part
| Specification | L138-FX-225-RC |
|---|---|
| Co-Processor | TMS320C674x (DSP) |
| Connector Type | SO-DIMM-200 |
| Core Processor | OMAP-L138, ARM926EJ-S |
| Flash Size (NAND) | 256 MB |
| Flash Size (NOR) | 8 MB |
| Flash Type | NAND, NOR |
| Module/Board Type | DSP Core, MPU |
| Operating Temperature (Max) | 70 °C |
| Operating Temperature (Min) | 0 °C |
| RAM Size (External) | 128 MB |
| RAM Size (Internal DSP) | 256 KB |
| RAM Size (Internal MPU) | 8 KB |
| RAM Size Type | External, Internal MPU, Internal DSP |
| Size / Dimension Length | 2.66 in |
| Size / Dimension Width | 1.5 in |
| Speed | 456 MHz |
