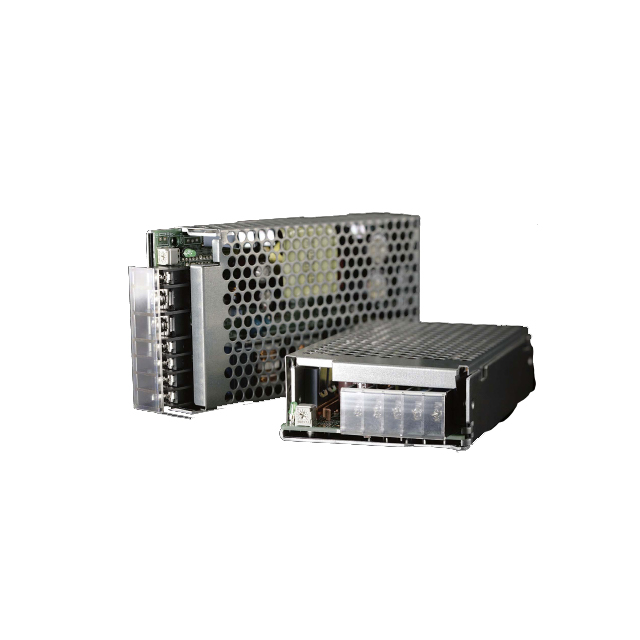

ESS30-36

Active

ETA-USA

AC/DC CONVERTER 36V 29W

Search across all available documentation for this part.

Active

ETA-USA

AC/DC CONVERTER 36V 29W

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	ESS30-36	ESS30 Series

Applications	Industrial, ITE (Commercial)	Industrial, ITE (Commercial)
Approval Agency	CE, cURus, CSA, SEMKO	CE, cURus, CSA, SEMKO
Current - Output 1	-	6 - 650 A
Efficiency	90.5 %	90.5 %
Features	Remote Sense, Universal Input, Adjustable Output	Remote Sense, Universal Input, Adjustable Output
Mounting Type	Chassis Mount	Chassis Mount
Number of Outputs	1	1
Operating Temperature [Max]	71 °C	71 °C
Operating Temperature [Min]	-10 °C	-10 °C
Power (Watts)	29 W	29 - 31 W
Size / Dimension [x]	3.86 in	3.86 in
Size / Dimension [x]	98 mm	98 mm
Size / Dimension [y]	33 mm	33 mm
Size / Dimension [y]	1.3 in	1.3 in
Size / Dimension [z]	2.68 "	2.68 "
Size / Dimension [z]	68 mm	68 mm
Standard Number	60950-1, UL 508	60950-1, UL 508
Type	Enclosed	Enclosed
Voltage - Input [Max]	370 VDC, 264 VAC	264 - 370 VDC
Voltage - Input [Min]	110 VDC, 85 VAC	85 - 110 VDC
Voltage - Isolation	3000 V	3000 V
Voltage - Output 1	36 V	5 - 48 V

AC/DC CONVERTER 5V 30W

Part	Voltage - Input [Min]	Voltage - Input [Max]	Approval Agency	Standard Number	Efficiency	Number of Outputs	Type	Operating Temperature [Min]	Operating Temperature [Max]	Features	Voltage - Isolation	Current - Output 1	Mounting Type	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Voltage - Output 1	Applications	Power (Watts)
ETA-USA ESS30-05	85 VAC, 110 VDC	264 VAC, 370 VDC	CE, CSA, cURus, SEMKO	60950-1, UL 508	90.5 %	1	Enclosed	-10 °C	71 °C	Adjustable Output, Remote Sense, Universal Input	3000 V	6 A	Chassis Mount	3.86 in	2.68 "	33 mm	98 mm	1.3 in	68 mm	5 V	Industrial, ITE (Commercial)	30 W
ETA-USA ESS30-36	85 VAC, 110 VDC	264 VAC, 370 VDC	CE, CSA, cURus, SEMKO	60950-1, UL 508	90.5 %	1	Enclosed	-10 °C	71 °C	Adjustable Output, Remote Sense, Universal Input	3000 V		Chassis Mount	3.86 in	2.68 "	33 mm	98 mm	1.3 in	68 mm	36 V	Industrial, ITE (Commercial)	29 W
ETA-USA ESS30-48	85 VAC, 110 VDC	264 VAC, 370 VDC	CE, CSA, cURus, SEMKO	60950-1, UL 508	90.5 %	1	Enclosed	-10 °C	71 °C	Adjustable Output, Remote Sense, Universal Input	3000 V	650 mA	Chassis Mount	3.86 in	2.68 "	33 mm	98 mm	1.3 in	68 mm	48 V	Industrial, ITE (Commercial)	31 W

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 175.00

General part information

Enclosed AC DC Converters 1 Output 36V 85 ~ 264 VAC, 110 ~ 370 VDC Input
