4143-C
ActiveBRADY

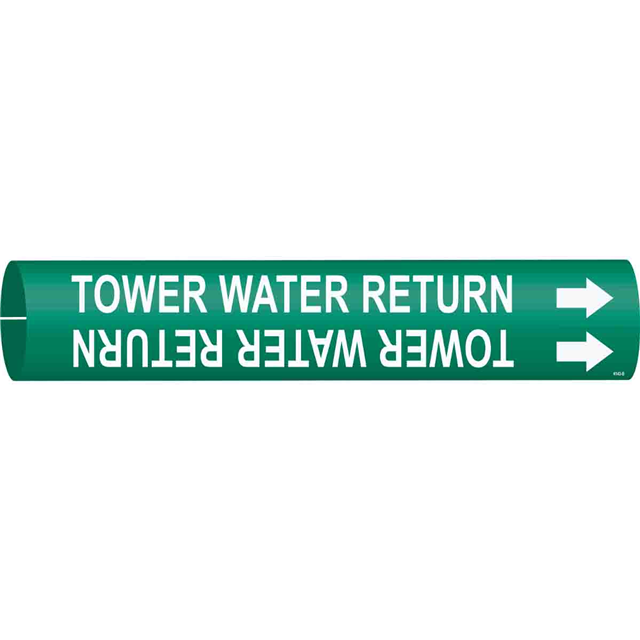

PIPEMARKER TOWER WATER RETURN
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
4143-C
ActiveBRADY
PIPEMARKER TOWER WATER RETURN
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 4143-C | 4143 Series |
|---|---|---|
| Application Specifics | Water Fluids | Water Fluids |
| Applications | General | General |
| Arrangement | Text Only | Text Only |
| Color | - | White Legend, Green Background |
| Color - Background | Green | Green |
| Color - Legend | White | White |
| Features | Chemical Resistant, Abrasion Resistant | Chemical Resistant, Abrasion Resistant |
| Label Size | - | 0.81 - 812.8 mm |
| Label Size | - | 24 - 32 in |
| Label Size | - | 10 in |
| Label Size | - | 2.81 - 254 mm |
| Label Size | - | 203.2 mm |
| Label Size | - | 0.88 " |
| Label Size | - | 228.6 mm |
| Label Size | - | 9 " |
| Label Size | - | 22.2 mm |
| Label Type | - | Tower Water Return |
| Language | English | English |
| Legend (Symbol Only) | False | False |
| Legend (Text) | Tower Water Return | Tower Water Return |
| Length | 50.8 mm | 50.8 mm |
| Length | 2 in | 2 in |
| Location | Outdoor | Outdoor |
| Material | - | Plastic |
| Material - Body | Plastic | Plastic |
| Outside Pipe Diameter (Max) [diameter] | 2.5 " | 2.5 " |
| Outside Pipe Diameter (Max) [diameter] | 63.5 mm | 63.5 mm |
| Outside Pipe Diameter (Min) [Min] [diameter] | 98.43 mm | 98.43 mm |
| Outside Pipe Diameter (Min) [Min] [diameter] | 3.875 in | 3.875 in |
| Print Type | Pre-Printed | Pre-Printed |
| Shape | Square | Square |
| Width [x] | 2 in | 2 in |
| Width [x] | 50.8 mm | 50.8 mm |
4143 Series
PIPEMARKER TOWER WATER RETURN
| Part | Legend (Text) | Application Specifics | Outside Pipe Diameter (Min) [Min] [diameter] | Outside Pipe Diameter (Min) [Min] [diameter] | Legend (Symbol Only) | Material - Body | Shape | Color - Legend | Print Type | Applications | Width [x] | Width [x] | Language | Outside Pipe Diameter (Max) [diameter] | Outside Pipe Diameter (Max) [diameter] | Location | Arrangement | Length | Length | Color - Background | Features | Color | Material | Label Type | Label Size [x] | Label Size [x] | Label Size [y] | Label Size [y] | Label Size [y] | Label Size [custom] | Label Size [custom] | Label Size [custom] | Label Size [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
BRADY 4143-C | Tower Water Return | Water Fluids | 98.43 mm | 3.875 in | Plastic | Square | White | Pre-Printed | General | 2 in | 50.8 mm | English | 2.5 " | 63.5 mm | Outdoor | Text Only | 50.8 mm | 2 in | Green | Abrasion Resistant, Chemical Resistant | |||||||||||||
BRADY 4143-H | White Legend, Green Background | Plastic | Tower Water Return | 812.8 mm | 32 in | 10 in | 254 mm | ||||||||||||||||||||||||||
BRADY 4143-A | White Legend, Green Background | Plastic | Tower Water Return | 0.81 in, 20.6 mm | 203.2 mm | ||||||||||||||||||||||||||||
BRADY 4143-F | White Legend, Green Background | Plastic | Tower Water Return | ||||||||||||||||||||||||||||||
BRADY 4143-G | White Legend, Green Background | Plastic | Tower Water Return | 609.6 mm | 24 in | 10 in | 254 mm | ||||||||||||||||||||||||||
BRADY 4143-B | White Legend, Green Background | Plastic | Tower Water Return | 0.88 " | 228.6 mm | 9 " | 22.2 mm | ||||||||||||||||||||||||||
BRADY 4143-D | White Legend, Green Background | Plastic | Tower Water Return | 533.4 mm | 2.81 in, 71.4 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 20.58 | |
Description
General part information
4143 Series
PIPEMARKER TOWER WATER RETURN
