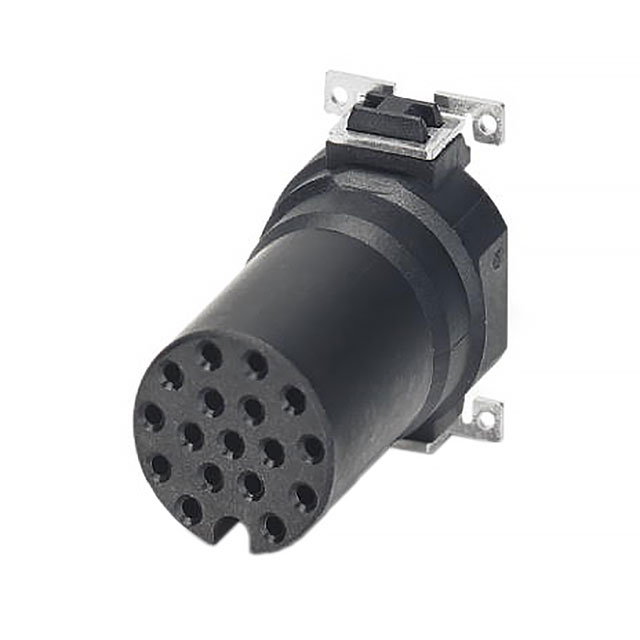

Specification	1411980

Connector Type	Female Sockets, Insert
Contact Finish - Mating	Gold
Contact Material	Copper Zinc
Current Rating	1.5 A
Features	Requires Shell, Board Guide, Insert Only
Ingress Protection Description	Waterproof, Dust Tight
Ingress Protection IP Rating	IP67
Insert Material	PA, Nylon, Polyamide
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount
Number of Positions	17
Operating Temperature (Max)	105 °C
Operating Temperature (Min)	-55 °C
Orientation	A
Shell Size - Insert	M12-17
Termination	Solder
Voltage Rating	30 V
