M3RRK-1006J

Active

IDC CABLE - MPR10K/MC10G/MPR10K

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Ribbon Cable Assembly Length Guide +1

M3RRK-1006J

Active

IDC CABLE - MPR10K/MC10G/MPR10K

Deep-Dive with AI

DocumentsDatasheet Ribbon Cable Assembly Length Guide +1

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 17.81
		10	$ 13.70
		25	$ 12.39
		50	$ 11.51
		100	$ 10.71
		250	$ 9.76
		500	$ 9.13
		1000	$ 8.55

Description

General part information

M3RRK Series

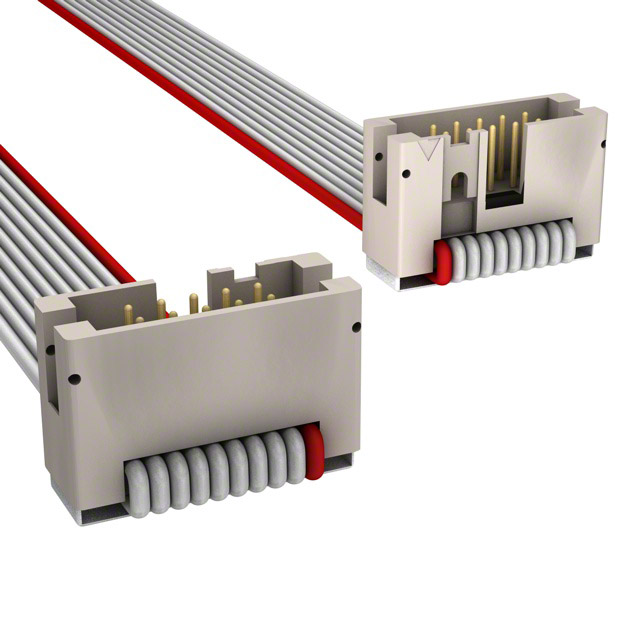

10 Position Cable Assembly Rectangular Plug to Plug 0.500' (152.40mm, 6.00")

Documents

Technical documentation and resources

Datasheet

Ribbon Cable Assembly Length Guide

Datasheet

3365 Series Datasheet

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	M3RRK-1006J	M3RRK Series

Cable Termination	IDC	IDC
Color	-	Multiple, Twisted Pair (Flat), Ribbon, Multiple
Connector Type	Plug to Plug	Plug to Plug
Contact Finish	Gold	Gold
Contact Finish Thickness	0.76 Ám	0.76 Ám
Contact Finish Thickness	30 Áin	30 Áin
Features	Polarizing Key, Strain Relief	Polarizing Key, Strain Relief
Length	152.4 mm	152.4 - 508 mm
Length	6 "	6 "
Length	0.5 '	0.5 '
Length	-	1.67 ft
Length	-	1.02 - 914.4 mm
Length	-	1.5 - 3.34 ft
Number of Positions	10	10 - 64
Number of Positions	-	16
Number of Rows	2	2
Pitch - Cable	0.05 "	0.05 "
Pitch - Cable	1.27 mm	1.27 mm
Pitch - Connector	0.1 in	0.1 in
Pitch - Connector	2.54 mm	2.54 mm
Shielding	Unshielded	Unshielded

M3RRK Series

IDC CABLE - MPR26K/MC26F/MPR26K

Part	Contact Finish Thickness	Contact Finish Thickness	Color	Connector Type	Features	Length	Length	Number of Rows	Number of Positions	Cable Termination	Pitch - Connector	Pitch - Connector	Pitch - Cable	Pitch - Cable	Shielding	Contact Finish	Length [x]	Length [x]	Length	Length
3M M3RRK-2620K	0.76 Ám	30 Áin	Multiple, Twisted Pair (Flat)	Plug to Plug	Polarizing Key, Strain Relief	508 mm	1.67 ft	2	26	IDC	0.1 in	2.54 mm	0.05 "	1.27 mm	Unshielded	Gold
3M M3RRK-3018J	0.76 Ám	30 Áin		Plug to Plug	Polarizing Key, Strain Relief			2	30	IDC	0.1 in	2.54 mm	0.05 "	1.27 mm	Unshielded	Gold	457.2 mm	1.5 ft
3M M3RRK-2006J	0.76 Ám	30 Áin		Plug to Plug	Polarizing Key, Strain Relief	152.4 mm		2	20	IDC	0.1 in	2.54 mm	0.05 "	1.27 mm	Unshielded	Gold			6 "	0.5 '
3M M3RRK-2418R	0.76 Ám	30 Áin	Multiple, Ribbon	Plug to Plug	Polarizing Key, Strain Relief			2	24	IDC	0.1 in	2.54 mm	0.05 "	1.27 mm	Unshielded	Gold	457.2 mm	1.5 ft
3M M3RRK-1420K	0.76 Ám	30 Áin	Multiple, Twisted Pair (Flat)	Plug to Plug	Polarizing Key, Strain Relief	508 mm	1.67 ft	2	14	IDC	0.1 in	2.54 mm	0.05 "	1.27 mm	Unshielded	Gold
3M M3RRK-3406R	0.76 Ám	30 Áin	Multiple, Ribbon	Plug to Plug	Polarizing Key, Strain Relief	152.4 mm		2	34	IDC	0.1 in	2.54 mm	0.05 "	1.27 mm	Unshielded	Gold			6 "	0.5 '
3M M3RRK-6420K	0.76 Ám	30 Áin	Multiple, Twisted Pair (Flat)	Plug to Plug	Polarizing Key, Strain Relief	508 mm	1.67 ft	2	64	IDC	0.1 in	2.54 mm	0.05 "	1.27 mm	Unshielded	Gold
3M M3RRK-2018J	0.76 Ám	30 Áin		Plug to Plug	Polarizing Key, Strain Relief			2	20	IDC	0.1 in	2.54 mm	0.05 "	1.27 mm	Unshielded	Gold	457.2 mm	1.5 ft
3M M3RRK-5036J	0.76 Ám	30 Áin		Plug to Plug	Polarizing Key, Strain Relief			2	50	IDC	0.1 in	2.54 mm	0.05 "	1.27 mm	Unshielded	Gold	914.4 mm	3 ft
3M M3RRK-6020K	0.76 Ám	30 Áin	Multiple, Twisted Pair (Flat)	Plug to Plug	Polarizing Key, Strain Relief	508 mm	1.67 ft	2	60	IDC	0.1 in	2.54 mm	0.05 "	1.27 mm	Unshielded	Gold
