Description
General part information
101219

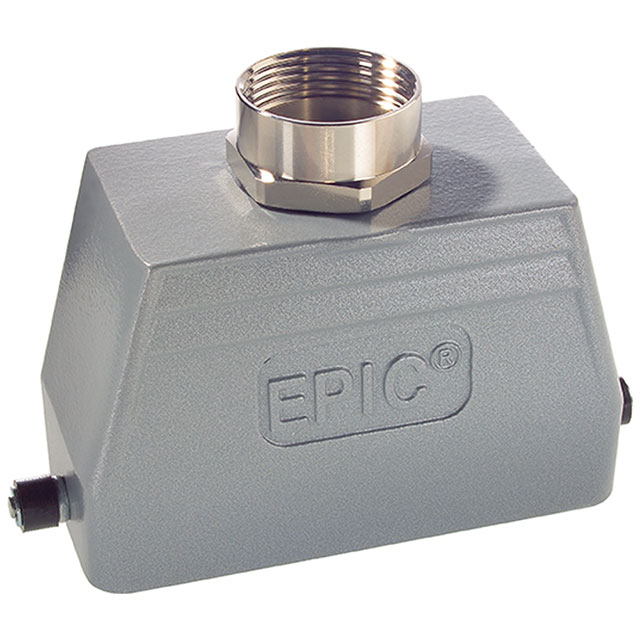

Hood Connector Top Entry PG21 HB24 IP65 - Dust Tight, Water Resistant
Technical Specifications
Parameters and characteristics for this part
| Specification | 101219 |
|---|---|
| Connector Type | Hood |
| Housing Color | Gray |
| Housing Finish | Powder Coated |
| Housing Material | Aluminum Alloy |
| Ingress Protection Description | Dust Tight, Water Resistant |
| Ingress Protection IP Rating | IP65 |
| Lock Location | Locking Clip (1) on Base Bottom |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -40 °C |
| Size | HB24 |
| Size / Dimension Height | 2.402 in |
| Size / Dimension Length | 4.724 in |
| Size / Dimension Width | 1.693 in |
| Style | Top Entry |
| Thread Size | PG21 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
No documents available
