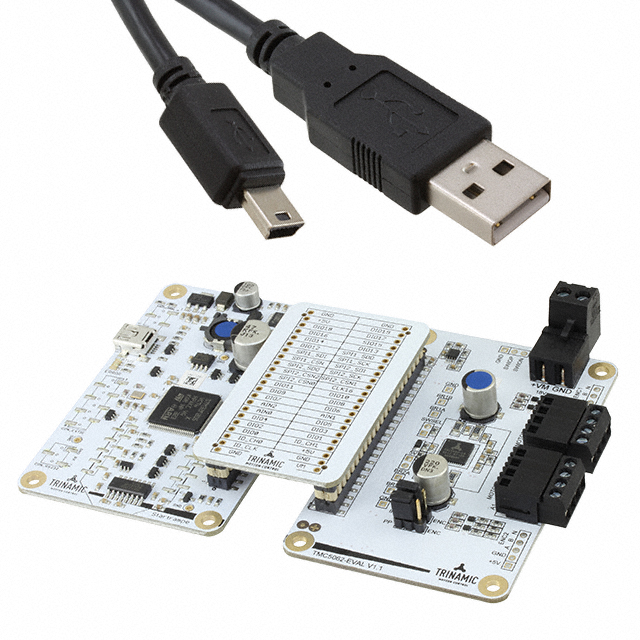

TMC5062-EVAL-KIT
ActiveAnalog Devices Inc./Maxim Integrated
EVALUATION KIT FOR TMC5062
Deep-Dive with AI
Search across all available documentation for this part.
TMC5062-EVAL-KIT
ActiveAnalog Devices Inc./Maxim Integrated
EVALUATION KIT FOR TMC5062
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | TMC5062-EVAL-KIT | TMC5062 Series |
|---|---|---|
| Applications | - | General Purpose |
| Contents | Board(s) | Board(s) |
| Current - Output | - | 1.1 A |
| Embedded | MCU, 32-Bit | MCU, 32-Bit |
| Embedded | True | True |
| Function | - | Driver - Fully Integrated, Control and Power Stage |
| Interface | - | SPI, RS-232 |
| Motor Type - Stepper | - | Bipolar |
| Mounting Type | - | Surface Mount |
| Operating Temperature | - | -40 °C |
| Operating Temperature | - | 125 ¯C |
| Output Configuration | - | Half Bridge (8) |
| Package / Case | - | 48-VFQFN Exposed Pad |
| Primary Attributes | Motors (Stepper) | Motors (Stepper) |
| Secondary Attributes | SPI Interface(s) | SPI Interface(s) |
| Step Resolution | - | 1 |
| Step Resolution | - | 0.00390625 |
| Supplied Contents | Board(s) | Board(s) |
| Supplier Device Package | - | 48-QFN (7x7) |
| Technology | - | Power MOSFET |
| Type | Power Management | Power Management |
| Utilized IC / Part | TMC5062 | TMC5062 |
| Voltage - Load | - | 4.57 V |
| Voltage - Load | - | 20 V |
| Voltage - Supply | - | 3.3 V |
| Voltage - Supply | - | 5.5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 133.24 | |
TMC5062 Series
IC MTR DRVR BIPLR 3.3-5.5V 48QFN
| Part | Voltage - Load [Min] | Voltage - Load [Max] | Technology | Mounting Type | Supplier Device Package | Output Configuration | Function | Operating Temperature [Min] | Operating Temperature [Max] | Voltage - Supply [Min] | Voltage - Supply [Max] | Motor Type - Stepper | Interface | Applications | Step Resolution [Max] | Step Resolution [Min] | Current - Output | Package / Case | Primary Attributes | Supplied Contents | Type | Utilized IC / Part | Embedded | Embedded | Secondary Attributes | Contents |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Analog Devices Inc./Maxim Integrated TMC5062-LA-T | 4.57 V | 20 V | Power MOSFET | Surface Mount | 48-QFN (7x7) | Half Bridge (8) | Driver - Fully Integrated, Control and Power Stage | -40 °C | 125 ¯C | 3.3 V | 5.5 V | Bipolar | RS-232, SPI | General Purpose | 1 | 0.00390625 | 1.1 A | 48-VFQFN Exposed Pad | ||||||||
Analog Devices Inc./Maxim Integrated TMC5062-LA | 4.57 V | 20 V | Power MOSFET | Surface Mount | 48-QFN (7x7) | Half Bridge (8) | Driver - Fully Integrated, Control and Power Stage | -40 °C | 125 ¯C | 3.3 V | 5.5 V | Bipolar | RS-232, SPI | General Purpose | 1 | 0.00390625 | 1.1 A | 48-VFQFN Exposed Pad | ||||||||
Analog Devices Inc./Maxim Integrated TMC5062-EVAL-KIT | Motors (Stepper) | Board(s) | Power Management | TMC5062 | 32-Bit, MCU | SPI Interface(s) | Board(s) |
Description
General part information
TMC5062 Series
TMC5062 Motor Controller/Driver, Stepper Power Management Evaluation Board
Documents
Technical documentation and resources
No documents available
