794236-1

Active

TE Connectivity AMP Connectors

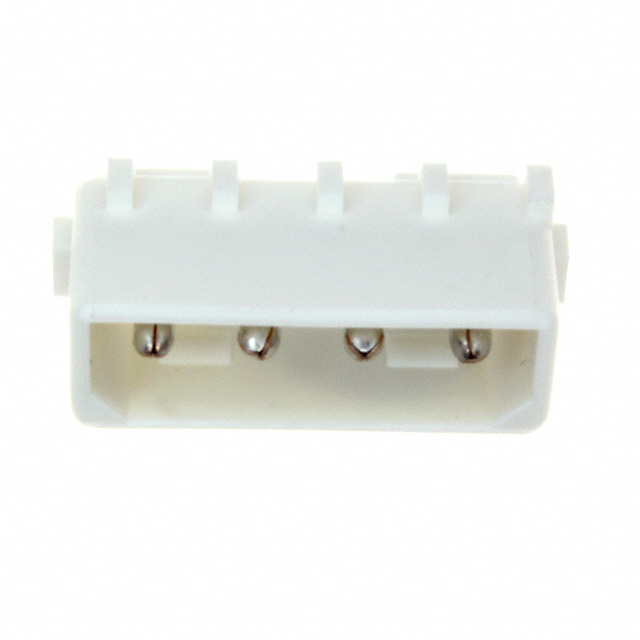

CONN HEADER VERT 4POS 5.08MM

Search across all available documentation for this part.

Active

TE Connectivity AMP Connectors

CONN HEADER VERT 4POS 5.08MM

Technical Specifications

Parameters and characteristics for this part

Specification	794236-1

Applications	General Purpose
Connector Type	Header
Contact Finish - Post	Tin
Contact Length - Post [x]	0.15 in
Contact Length - Post [x]	3.81 mm
Contact Material	Phosphor Bronze
Contact Shape	Circular
Contact Type	Male Pin
Current Rating (Amps)	15 A
Fastening Type	Detent Lock
Insulation Color	White
Insulation Height	0.375 in
Insulation Height	9.53 mm
Insulation Material	Polyamide (PA), Nylon
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	4
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Pitch - Mating	5.08 mm
Pitch - Mating	0.2 in
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Solder
Voltage Rating	250 VAC

CONN HEADER VERT 4POS 5.08MM

Part	Connector Type	Mounting Type	Pitch - Mating	Pitch - Mating	Material Flammability Rating	Contact Finish - Post	Number of Positions	Current Rating (Amps)	Operating Temperature [Max]	Operating Temperature [Min]	Termination	Number of Positions Loaded	Insulation Height	Insulation Height	Contact Type	Style	Shrouding	Contact Shape	Insulation Color	Fastening Type	Voltage Rating	Contact Length - Post [x]	Contact Length - Post [x]	Contact Material	Applications	Number of Rows	Insulation Material
TE Connectivity AMP Connectors 794236-1	Header	Through Hole	5.08 mm	0.2 in	UL94 V-0	Tin	4	15 A	105 ░C	-55 °C	Solder	All	0.375 in	9.53 mm	Male Pin	Board to Cable/Wire	Shrouded - 4 Wall	Circular	White	Detent Lock	250 VAC	0.15 in	3.81 mm	Phosphor Bronze	General Purpose	1	Nylon, Polyamide (PA)
