387-037-542-168
ActiveEDAC Inc.

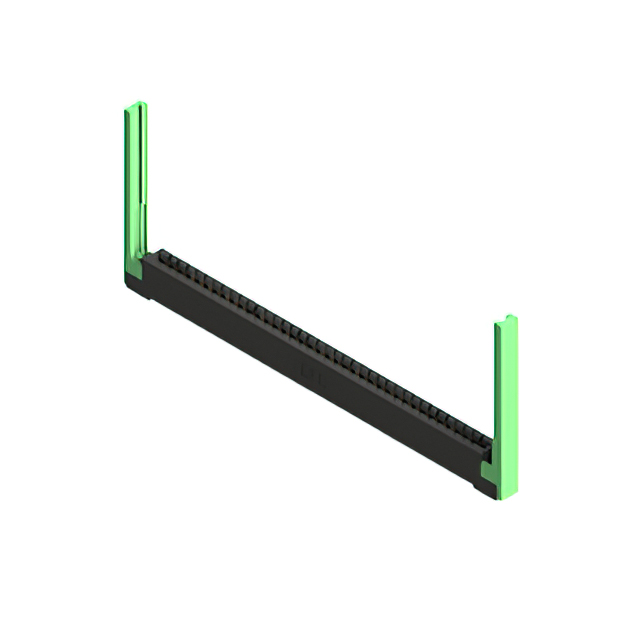

CONN EDGE SGL FMALE 37POS 0.156
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
387-037-542-168
ActiveEDAC Inc.
CONN EDGE SGL FMALE 37POS 0.156
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 387-037-542-168 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Single Edge |
| Color | Black |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Cantilever |
| Flange Feature | Flush Mount, Threaded Insert, 4-40, Top Opening |
| Gender | Female |
| Material - Insulation | Polyester Thermoplastic |
| Mounting Type | Through Hole |
| Number of Positions | 37 |
| Number of Positions/Bay/Row [custom] | 37 |
| Number of Positions/Bay/Row [custom] | 37 |
| Number of Positions/Bay/Row [custom] | 37 |
| Number of Rows | 1 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 0.156 in |
| Pitch [x] | 3.96 mm |
| Read Out | Single |
| Termination | Wire Wrap |
| Termination Rows | 1 |
387-037 Series
...
| Part | Number of Rows | Operating Temperature [Min] | Operating Temperature [Max] | Contact Finish | Contact Material | Color | Material - Insulation | Contact Finish Thickness | Contact Finish Thickness | Number of Positions | Number of Positions/Bay/Row [custom] | Number of Positions/Bay/Row [custom] | Number of Positions/Bay/Row [custom] | Gender | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Flange Feature [diameter] | Flange Feature | Flange Feature [diameter] | Contact Type | Card Type | Read Out | Termination | Mounting Type | Pitch [x] | Pitch [x] | Termination Rows |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | 1 | -40 °C | 105 ░C | Gold | Copper Alloy | Black | Polyester Thermoplastic | 10 Áin | 0.25 Ám | 37 | 37 | 37 | 37 | Female | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 0.156 in | Top Mount Opening Unthreaded | 3.96 mm | Cantilever | Non Specified - Single Edge | Single | Solder | Through Hole | 0.156 in | 3.96 mm | 1 |
EDAC Inc. | 1 | -40 °C | 105 ░C | Gold | Copper Alloy | Black | Polyester Thermoplastic | 10 Áin | 0.25 Ám | 37 | 37 | 37 | 37 | Female | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Cantilever | Non Specified - Single Edge | Single | Solder | Through Hole | 0.156 in | 3.96 mm | 1 | |||
EDAC Inc. | 1 | -40 °C | 105 ░C | Gold | Copper Alloy | Black | Polyester Thermoplastic | 10 Áin | 0.25 Ám | 37 | 37 | 37 | 37 | Female | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 0.116 in | Floating Bobbin Flush Mount | 2.95 mm | Cantilever | Non Specified - Single Edge | Single | Wire Wrap | Through Hole Right Angle | 0.156 in | 3.96 mm | 1 |
EDAC Inc. | 1 | -40 °C | 105 ░C | Gold | Copper Alloy | Black | Polyester Thermoplastic | 10 Áin | 0.25 Ám | 37 | 37 | 37 | 37 | Female | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 4-40 Flush Mount Threaded Insert Top Opening | Cantilever | Non Specified - Single Edge | Single | Wire Wrap | Through Hole | 0.156 in | 3.96 mm | 1 | ||
EDAC Inc. | 1 | -40 °C | 105 ░C | Gold | Copper Alloy | Black | Polyester Thermoplastic | 10 Áin | 0.25 Ám | 37 | 37 | 37 | 37 | Female | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 0.128 " | Flush Mount Top Opening Unthreaded | 3.25 mm | Cantilever | Non Specified - Single Edge | Single | Solder | Through Hole | 0.156 in | 3.96 mm | 1 |
EDAC Inc. | 1 | -40 °C | 105 ░C | Gold | Copper Alloy | Black | Polyester Thermoplastic | 10 Áin | 0.25 Ám | 37 | 37 | 37 | 37 | Female | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 4-40 Threaded Insert Top Mount Opening | Cantilever | Non Specified - Single Edge | Single | Solder | Through Hole | 0.156 in | 3.96 mm | 1 | ||
EDAC Inc. | 1 | -40 °C | 105 ░C | Gold | Copper Alloy | Black | Polyester Thermoplastic | 10 Áin | 0.25 Ám | 37 | 37 | 37 | 37 | Female | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 4-40 Flush Mount Threaded Insert Top Opening | Cantilever | Non Specified - Single Edge | Single | Wire Wrap | Through Hole Right Angle | 0.156 in | 3.96 mm | 1 | ||
EDAC Inc. | 1 | -40 °C | 105 ░C | Gold | Copper Alloy | Black | Polyester Thermoplastic | 10 Áin | 0.25 Ám | 37 | 37 | 37 | 37 | Female | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 4-40 Flush Mount Threaded Insert Top Opening | Cantilever | Non Specified - Single Edge | Single | Wire Wrap | Through Hole | 0.156 in | 3.96 mm | 1 | ||
EDAC Inc. | 1 | -40 °C | 105 ░C | Gold | Copper Alloy | Black | Polyester Thermoplastic | 10 Áin | 0.25 Ám | 37 | 37 | 37 | 37 | Female | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 4-40 Flush Mount Threaded Insert Top Opening | Cantilever | Non Specified - Single Edge | Single | Wire Wrap | Through Hole | 0.156 in | 3.96 mm | 1 | ||
EDAC Inc. | 1 | -40 °C | 105 ░C | Gold | Copper Alloy | Black | Polyester Thermoplastic | 10 Áin | 0.25 Ám | 37 | 37 | 37 | 37 | Female | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Cantilever | Non Specified - Single Edge | Single | Wire Wrap | Through Hole | 0.156 in | 3.96 mm | 1 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
387-037 Series
37 Position Female Connector Non Specified - Single Edge Gold 0.156" (3.96mm) Black
