N2534-5002-RB
Active3M

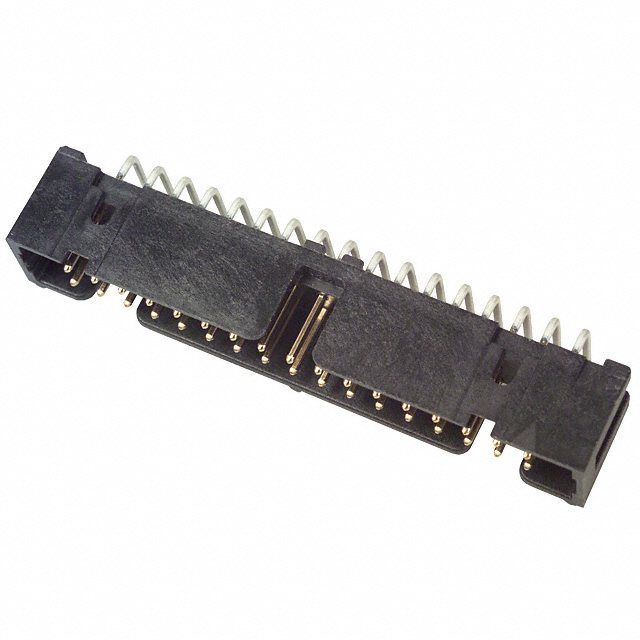

CONN HEADER R/A 34POS 2.54MM
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
N2534-5002-RB
Active3M
CONN HEADER R/A 34POS 2.54MM
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | N2534-5002-RB | N2534 Series |
|---|---|---|
| Connector Type | Header | Header |
| Contact Finish - Mating | Gold | Gold |
| Contact Finish - Post | Tin | Tin-Lead, Tin |
| Contact Finish Thickness - Mating | 30 Áin | 30 Áin |
| Contact Finish Thickness - Mating | 0.76 Ám | 0.76 Ám |
| Contact Finish Thickness - Post | 200 µin | 200 µin |
| Contact Finish Thickness - Post | 5.08 µm | 5.08 µm |
| Contact Length - Post | 2.84 mm | 2.84 - 3.94 mm |
| Contact Length - Post | 0.112 in | 0.112 - 0.155 " |
| Contact Material | Copper Alloy | Copper Alloy |
| Contact Shape | Square | Square |
| Contact Type | Male Pin | Male Pin |
| Current Rating (Amps) | 1.75 A | 1.75 A |
| Fastening Type | Push-Pull | Push-Pull |
| Features | Keying Slot | Keying Slot |
| Insulation Color | Black | Black |
| Insulation Height | 0.338 in | 0.338 in |
| Insulation Height | 8.59 mm | 8.59 mm |
| Insulation Height | - | 9.91 mm |
| Insulation Height | - | 0.39 in |
| Insulation Material | Polyester, Glass Filled, Polycyclohexylenedimethylene Terephthalate (PCT) | Polyester, Glass Filled, Polycyclohexylenedimethylene Terephthalate (PCT) |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 |
| Mounting Type | Through Hole, Right Angle | Through Hole, Through Hole, Right Angle |
| Number of Positions | 34 | 34 |
| Number of Positions Loaded | All | All |
| Number of Rows | 2 | 2 |
| Operating Temperature [Max] | 105 ░C | 105 ░C |
| Operating Temperature [Min] | -55 °C | -55 °C |
| Pitch - Mating | 0.1 in | 0.1 in |
| Pitch - Mating | 2.54 mm | 2.54 mm |
| Row Spacing - Mating [x] | 2.54 mm | 2.54 mm |
| Row Spacing - Mating [x] | 0.1 in | 0.1 in |
| Shrouding | Shrouded - 4 Wall | Shrouded - 4 Wall |
| Style | Board to Board, Cable | Board to Board, Cable |
| Termination | Solder | Solder |
N2534 Series
CONN HEADER VERT 34POS 2.54MM
| Part | Number of Rows | Features | Insulation Material | Current Rating (Amps) | Termination | Contact Finish - Post | Contact Type | Operating Temperature [Max] | Operating Temperature [Min] | Insulation Color | Contact Shape | Pitch - Mating | Pitch - Mating | Insulation Height [z] | Insulation Height [z] | Row Spacing - Mating [x] | Row Spacing - Mating [x] | Contact Finish Thickness - Post | Contact Finish Thickness - Post | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Number of Positions | Contact Length - Post | Contact Length - Post | Material Flammability Rating | Fastening Type | Connector Type | Mounting Type | Number of Positions Loaded | Shrouding | Contact Material | Style | Contact Finish - Mating | Insulation Height | Insulation Height |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
2 | Keying Slot | Glass Filled, Polycyclohexylenedimethylene Terephthalate (PCT), Polyester | 1.75 A | Solder | Tin-Lead | Male Pin | 105 ░C | -55 °C | Black | Square | 0.1 in | 2.54 mm | 9.91 mm | 0.39 in | 2.54 mm | 0.1 in | 200 µin | 5.08 µm | 30 Áin | 0.76 Ám | 34 | 3.94 mm | 0.155 " | UL94 V-0 | Push-Pull | Header | Through Hole | All | Shrouded - 4 Wall | Copper Alloy | Board to Board, Cable | Gold | |||
2 | Keying Slot | Glass Filled, Polycyclohexylenedimethylene Terephthalate (PCT), Polyester | 1.75 A | Solder | Tin | Male Pin | 105 ░C | -55 °C | Black | Square | 0.1 in | 2.54 mm | 2.54 mm | 0.1 in | 200 µin | 5.08 µm | 30 Áin | 0.76 Ám | 34 | 2.84 mm | 0.112 in | UL94 V-0 | Push-Pull | Header | Through Hole, Right Angle | All | Shrouded - 4 Wall | Copper Alloy | Board to Board, Cable | Gold | 0.338 in | 8.59 mm | |||
2 | Keying Slot | Glass Filled, Polycyclohexylenedimethylene Terephthalate (PCT), Polyester | 1.75 A | Solder | Tin-Lead | Male Pin | 105 ░C | -55 °C | Black | Square | 0.1 in | 2.54 mm | 2.54 mm | 0.1 in | 200 µin | 5.08 µm | 30 Áin | 0.76 Ám | 34 | 2.84 mm | 0.112 in | UL94 V-0 | Push-Pull | Header | Through Hole, Right Angle | All | Shrouded - 4 Wall | Copper Alloy | Board to Board, Cable | Gold | 0.338 in | 8.59 mm | |||
2 | Keying Slot | Glass Filled, Polycyclohexylenedimethylene Terephthalate (PCT), Polyester | 1.75 A | Solder | Tin-Lead | Male Pin | 105 ░C | -55 °C | Black | Square | 0.1 in | 2.54 mm | 9.91 mm | 0.39 in | 2.54 mm | 0.1 in | 200 µin | 5.08 µm | 30 Áin | 0.76 Ám | 34 | 2.84 mm | 0.112 in | UL94 V-0 | Push-Pull | Header | Through Hole | All | Shrouded - 4 Wall | Copper Alloy | Board to Board, Cable | Gold |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 4.01 | |
| 10 | $ 3.65 | |||
| 280 | $ 2.81 | |||
| 560 | $ 2.73 | |||
| 1120 | $ 2.33 | |||
Description
General part information
N2534 Series
Connector Header Through Hole, Right Angle 34 position 0.100" (2.54mm)
