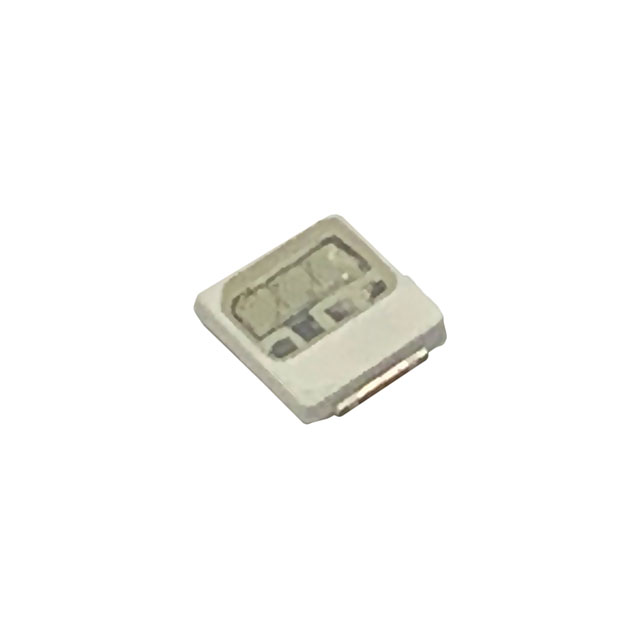

AB-EZP13G-A3

Active

American Bright Optoelectronics Corporation

LED AB-EZP GREEN 525NM 3030

Search across all available documentation for this part.

Active

American Bright Optoelectronics Corporation

LED AB-EZP GREEN 525NM 3030

Technical Specifications

Parameters and characteristics for this part

Specification	AB-EZP13G-A3

Color	Green
Height - Seated (Max) [Max] [z]	0.52 mm
Height - Seated (Max) [Max] [z]	0.02 "
Luminous Flux @ Current/Temperature	71 lm
Mounting Type	Surface Mount
Package / Case	1212
Package / Case	3030 Metric
Size / Dimension [x]	0.118 in
Size / Dimension [x]	3 mm
Size / Dimension [y]	3 mm
Size / Dimension [y]	0.118 in
Supplier Device Package	3030
Viewing Angle	120 °
Voltage - Forward (Vf) (Typ)	12 V
Wavelength	525 nm

LED AB-EZP GREEN 525NM 3030

Part	Luminous Flux @ Current/Temperature	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Mounting Type	Package / Case	Package / Case	Wavelength	Supplier Device Package	Viewing Angle	Voltage - Forward (Vf) (Typ)	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Color
American Bright Optoelectronics Corporation AB-EZP13G-A3	71 lm	0.118 in	3 mm	3 mm	0.118 in	Surface Mount	1212	3030 Metric	525 nm	3030	120 °	12 V	0.52 mm	0.02 "	Green

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

LED Lighting Color AB-EZP Green 525nm (520nm ~ 530nm) 1212 (3030 Metric)
