ERF8-040-01-L-D-RA-TR - SAMTEC ERF8-025-07.0-S-DV-K-TR

ERF8-040-01-L-D-RA-TR

Active
Samtec Inc.

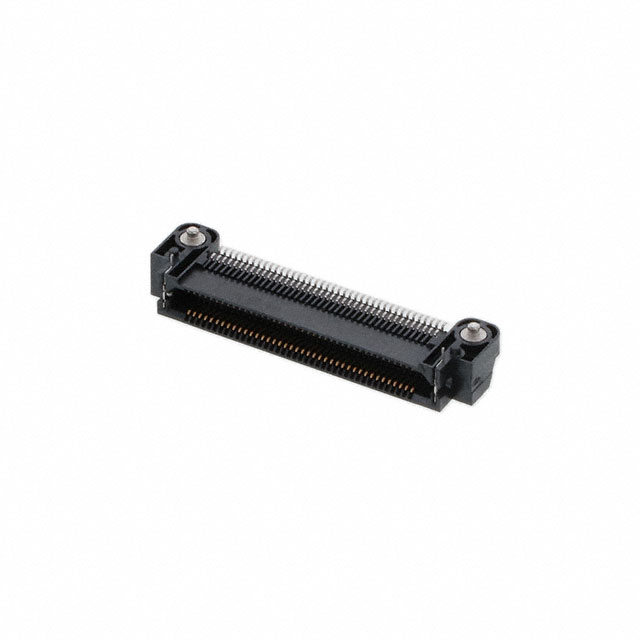

MEZZANINE CONNECTOR, RECEPTACLE, 0.8 MM, 2 ROWS, 80 CONTACTS, SURFACE MOUNT RIGHT ANGLE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsOne Page Summary ENTechnical Data Sheet EN+3
ERF8-040-01-L-D-RA-TR - SAMTEC ERF8-025-07.0-S-DV-K-TR

ERF8-040-01-L-D-RA-TR

Active
Samtec Inc.

MEZZANINE CONNECTOR, RECEPTACLE, 0.8 MM, 2 ROWS, 80 CONTACTS, SURFACE MOUNT RIGHT ANGLE

Deep-Dive with AI

DocumentsOne Page Summary ENTechnical Data Sheet EN+3

Technical Specifications

Parameters and characteristics for this part

SpecificationERF8-040-01-L-D-RA-TR
Connector TypeSocket, Outer Shroud Contacts
Contact FinishGold
Contact Finish Thickness10 Áin
Contact Finish Thickness0.25 Ám
FeaturesBoard Guide, Mounting Flange
Height Above Board6.25 mm
Height Above Board0.246 in
Mounting TypeSurface Mount, Right Angle
Number of Positions80
Number of Rows2
Pitch [x]0.8 mm
Pitch [x]0.031 in

ERF8-040 Series

PartMated Stacking HeightsPitch [x]Pitch [x]Height Above BoardHeight Above BoardMounting TypeNumber of PositionsContact Finish ThicknessContact Finish ThicknessFeaturesContact FinishConnector TypeNumber of RowsHeight Above Board [z]Height Above Board [z]
Samtec Inc.
ERF8-040-05.0-S-DV
7 mm
10 mm
13 mm
14 mm
20 mm
0.8 mm
0.031 in
0.21 in
5.33 mm
Surface Mount
80
0.76 Ám
30 Áin
Board Guide
Gold
Outer Shroud Contacts
Socket
2
Samtec Inc.
ERF8-040-07.0-L-DV-TR
9 mm
12 mm
15 mm
16 mm
22 mm
0.8 mm
0.031 in
Surface Mount
80
0.25 Ám
10 Áin
Board Guide
Gold
Outer Shroud Contacts
Socket
2
0.285 in
7.24 mm
Samtec Inc.
ERF8-040-01-L-D-EM2-TR
0.8 mm
0.031 in
Board Edge
Straddle Mount
80
0.25 Ám
10 Áin
Gold
Outer Shroud Contacts
Socket
2
Samtec Inc.
ERF8-040-03-S-D-RA-L-TR
0.8 mm
0.031 in
0.246 in
6.25 mm
Surface Mount
Right Angle
80
0.76 Ám
30 Áin
Board Guide
Latches
Mounting Flange
Gold
Outer Shroud Contacts
Socket
2
Samtec Inc.
ERF8-040-07.0-S-DV-EGP-TR
9 mm
12 mm
15 mm
16 mm
22 mm
0.8 mm
0.031 in
Surface Mount
80
0.76 Ám
30 Áin
Board Guide
Gold
Outer Shroud Contacts
Socket
2
0.285 in
7.24 mm
Samtec Inc.
ERF8-040-07.0-L-DV-K-TR
9 mm
12 mm
15 mm
16 mm
22 mm
0.8 mm
0.031 in
Surface Mount
80
0.25 Ám
10 Áin
Board Guide
Pick and Place
Gold
Outer Shroud Contacts
Socket
2
0.285 in
7.24 mm
Samtec Inc.
ERF8-040-07.0-L-DV-EGP-K-TR
9 mm
12 mm
15 mm
16 mm
22 mm
0.8 mm
0.031 in
Surface Mount
80
0.25 Ám
10 Áin
Board Guide
Pick and Place
Gold
Outer Shroud Contacts
Socket
2
0.285 in
7.24 mm
Samtec Inc.
ERF8-040-05.0-S-DV-TR
7 mm
10 mm
13 mm
14 mm
20 mm
0.8 mm
0.031 in
0.21 in
5.33 mm
Surface Mount
80
0.76 Ám
30 Áin
Board Guide
Gold
Outer Shroud Contacts
Socket
2
Samtec Inc.
ERF8-040-01-L-D-RA-TR
0.8 mm
0.031 in
0.246 in
6.25 mm
Surface Mount
Right Angle
80
0.25 Ám
10 Áin
Board Guide
Mounting Flange
Gold
Outer Shroud Contacts
Socket
2
Samtec Inc.
ERF8-040-03-L-D-RA-L-TR
0.8 mm
0.031 in
0.246 in
6.25 mm
Surface Mount
Right Angle
80
0.25 Ám
10 Áin
Board Guide
Latches
Mounting Flange
Gold
Outer Shroud Contacts
Socket
2

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyCut Tape (CT) 1$ 10.27
10$ 9.38
25$ 8.76
50$ 8.64
100$ 7.54
Tape & Reel (TR) 200$ 7.54
600$ 6.56
1000$ 6.49
NewarkEach (Supplied on Cut Tape) 1$ 9.96
10$ 9.10
25$ 8.50
50$ 8.39
100$ 7.31

Description

General part information

ERF8-040 Series

80 Position Connector Socket, Outer Shroud Contacts Surface Mount, Right Angle Gold
