2471 SL002
ActiveALPHA WIRE

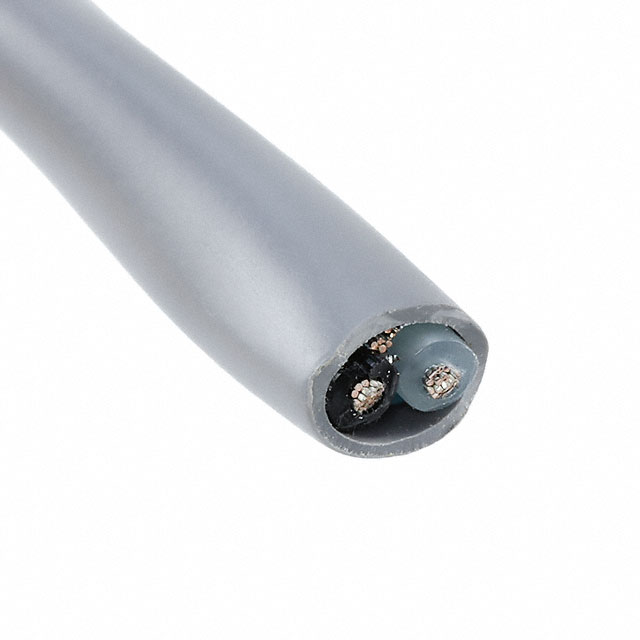

CABLE 2COND 16AWG SLATE SHLD
Deep-Dive with AI
Search across all available documentation for this part.
2471 SL002
ActiveALPHA WIRE
CABLE 2COND 16AWG SLATE SHLD
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 2471 SL002 | 2471 Series |
|---|---|---|
| Cable Type | Multi-Conductor | Multi-Conductor |
| Conductor Insulation | Polyethylene (PE) | Polyethylene (PE) |
| Conductor Material | Copper, Tinned | Copper, Tinned |
| Conductor Strand [custom] | 19 | 19 |
| Conductor Strand [custom] | 0.0117 in | 0.0117 in |
| Features | Drain Wire | Drain Wire |
| Jacket (Insulation) Diameter [diameter] | 0.314 in | 0.314 in |
| Jacket (Insulation) Diameter [diameter] | 7.98 mm | 7.98 mm |
| Jacket (Insulation) Material | Poly-Vinyl Chloride (PVC) | Poly-Vinyl Chloride (PVC) |
| Jacket Color | Slate | Slate |
| Length | - | 1000 ft |
| Length | - | 304.8 m |
| Length [x] | 500 ' | 100 - 500 ft |
| Length [x] | 152.4 m | 30.5 - 152.4 m |
| Number of Conductors | 2 | 2 |
| Operating Temperature [Max] | 60 °C | 60 °C |
| Operating Temperature [Min] | -20 C | -20 C |
| Shield Coverage | 100 % | 100 % |
| Shield Material | Aluminum | Aluminum |
| Shield Type | Foil | Foil |
| Usage | Control, Communication | Control, Communication |
| Voltage | 600 V | 600 V |
| Wire Gauge | 16 AWG | 16 AWG |
2471 Series
CABLE 2COND 16AWG SHLD 1000'
| Part | Wire Gauge | Shield Type | Length | Length | Conductor Insulation | Usage | Conductor Material | Operating Temperature [Min] | Operating Temperature [Max] | Jacket (Insulation) Material | Jacket Color | Features | Voltage | Shield Material | Conductor Strand [custom] | Conductor Strand [custom] | Number of Conductors | Cable Type | Shield Coverage | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Length [x] | Length [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
ALPHA WIRE 2471 SL001 | 16 AWG | Foil | 1000 ft | 304.8 m | Polyethylene (PE) | Communication, Control | Copper, Tinned | -20 C | 60 °C | Poly-Vinyl Chloride (PVC) | Slate | Drain Wire | 600 V | Aluminum | 19 | 0.0117 in | 2 | Multi-Conductor | 100 % | 0.314 in | 7.98 mm | ||
ALPHA WIRE 2471 SL005 | 16 AWG | Foil | Polyethylene (PE) | Communication, Control | Copper, Tinned | -20 C | 60 °C | Poly-Vinyl Chloride (PVC) | Slate | Drain Wire | 600 V | Aluminum | 19 | 0.0117 in | 2 | Multi-Conductor | 100 % | 0.314 in | 7.98 mm | 30.5 m | 100 ft | ||
ALPHA WIRE 2471 SL002 | 16 AWG | Foil | Polyethylene (PE) | Communication, Control | Copper, Tinned | -20 C | 60 °C | Poly-Vinyl Chloride (PVC) | Slate | Drain Wire | 600 V | Aluminum | 19 | 0.0117 in | 2 | Multi-Conductor | 100 % | 0.314 in | 7.98 mm | 152.4 m | 500 ' |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Spool | 500 | $ 1.75 | |
| 1000 | $ 1.66 | |||
| 1500 | $ 1.61 | |||
| 2500 | $ 1.57 | |||
Description
General part information
2471 Series
2 (1 Pair) Conductor Multi-Conductor Cable Slate 16 AWG Foil 500.0' (152.4m)
