PRA.M1.0GL.LC39A

Active

LEMO

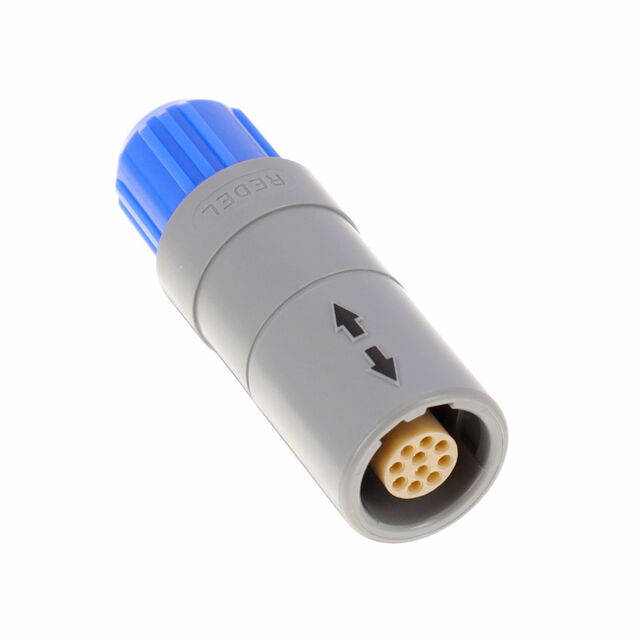

CONN RCPT FMALE 10P SOLDER CUP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

PRA.M1.0GL.LC39A

Active

LEMO

CONN RCPT FMALE 10P SOLDER CUP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 43.09
		10	$ 37.73
		25	$ 36.10
		50	$ 34.94
		100	$ 33.77
		250	$ 31.91

Description

General part information

PRA.M1 Series

10 Position Circular Connector Receptacle, Female Sockets Solder Cup

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	PRA.M1.0GL.LC39A	PRA.M1 Series

Applications	Medical, Industrial, Automotive, Testing Equipment & Measurement	Medical, Industrial, Automotive, Testing Equipment & Measurement
Backshell Material, Plating	Polysulfone (PSU)	Polysulfone (PSU)
Cable Opening	-	0.209 - 0.256 in
Cable Opening	-	5.3 - 6.5 mm
Cable Opening	-	0.157 in
Cable Opening	-	0.205 in
Cable Opening	-	4 mm
Cable Opening	-	5.2 mm
Cable Opening [Max] [diameter]	0.154 in	0.154 in
Cable Opening [Max] [diameter]	3.9 mm	3.9 mm
Cable Opening [Min] [diameter]	2.7 mm	2.7 mm
Cable Opening [Min] [diameter]	0.106 in	0.106 in
Color	Gray, Blue	Gray, Red, Blue
Connector Type	Receptacle, Female Sockets	Receptacle, Female Sockets
Contact Finish - Mating	Gold	Gold
Current Rating (Amps)	3 A	3 A
Fastening Type	Detent Lock, Push-Pull	Detent Lock, Push-Pull
Features	Backshell	Backshell
Ingress Protection	IP50	IP50
Insert Material	Polyetheretherketone (PEEK)	Polyetheretherketone (PEEK)
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Number of Positions	10	10
Operating Temperature [Max]	150 °C	150 °C
Operating Temperature [Min]	-50 °C	-50 °C
Orientation	A	A
Primary Material	Plastic	Plastic
Shell Material	Polysulfone (PSU)	Polysulfone (PSU)
Shell Size - Insert	M10	M10
Shielding	Unshielded	Unshielded

PRA.M1 Series

CONN RCPT FMALE 10P SOLDER CUP

Part	Cable Opening [custom]	Cable Opening [custom]	Color	Applications	Orientation	Shielding	Primary Material	Current Rating (Amps)	Features	Shell Material	Number of Positions	Backshell Material, Plating	Connector Type	Operating Temperature [Max]	Operating Temperature [Min]	Ingress Protection	Fastening Type	Mounting Type	Shell Size - Insert	Contact Finish - Mating	Insert Material	Cable Opening [Min] [diameter]	Cable Opening [Max] [diameter]	Cable Opening [Max] [diameter]	Cable Opening [Min] [diameter]	Cable Opening [Min] [custom]	Cable Opening [Max] [custom]	Cable Opening [Min] [custom]	Cable Opening [Max] [custom]
LEMO PRA.M1.0GL.LC65R	0.209 in, 0.256 in	5.3 mm, 6.5 mm	Gray, Red	Automotive, Industrial, Medical, Testing Equipment & Measurement	A	Unshielded	Plastic	3 A	Backshell	Polysulfone (PSU)	10	Polysulfone (PSU)	Receptacle, Female Sockets	150 °C	-50 °C	IP50	Detent Lock, Push-Pull	Free Hanging (In-Line)	M10	Gold	Polyetheretherketone (PEEK)
LEMO PRA.M1.0GL.LC39A			Blue, Gray	Automotive, Industrial, Medical, Testing Equipment & Measurement	A	Unshielded	Plastic	3 A	Backshell	Polysulfone (PSU)	10	Polysulfone (PSU)	Receptacle, Female Sockets	150 °C	-50 °C	IP50	Detent Lock, Push-Pull	Free Hanging (In-Line)	M10	Gold	Polyetheretherketone (PEEK)	2.7 mm	0.154 in	3.9 mm	0.106 in
LEMO PRA.M1.0GL.LC39G			Gray	Automotive, Industrial, Medical, Testing Equipment & Measurement	A	Unshielded	Plastic	3 A	Backshell	Polysulfone (PSU)	10	Polysulfone (PSU)	Receptacle, Female Sockets	150 °C	-50 °C	IP50	Detent Lock, Push-Pull	Free Hanging (In-Line)	M10	Gold	Polyetheretherketone (PEEK)	2.7 mm	0.154 in	3.9 mm	0.106 in
LEMO PRA.M1.0GL.LC52G			Gray	Automotive, Industrial, Medical, Testing Equipment & Measurement	A	Unshielded	Plastic	3 A	Backshell	Polysulfone (PSU)	10	Polysulfone (PSU)	Receptacle, Female Sockets	150 °C	-50 °C	IP50	Detent Lock, Push-Pull	Free Hanging (In-Line)	M10	Gold	Polyetheretherketone (PEEK)					0.157 in	0.205 in	4 mm	5.2 mm
