742C043222JTR

Obsolete

CTS Resistor Products

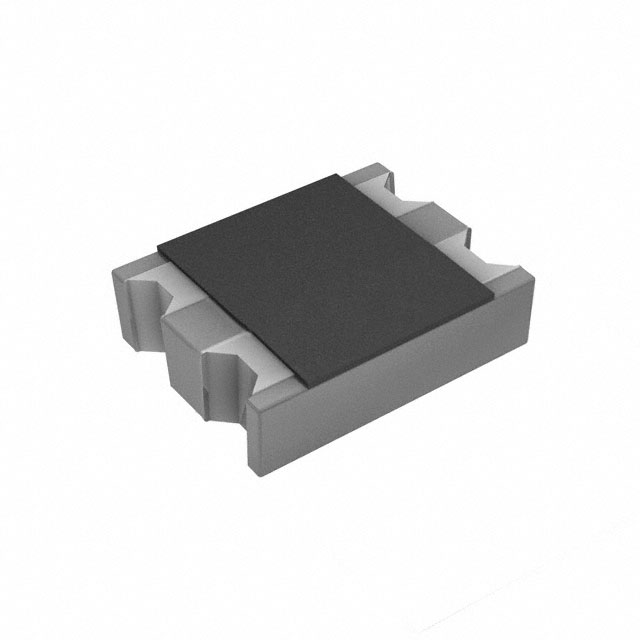

RES ARRAY 2 RES 2.2K OHM 0606

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

742C043222JTR

Obsolete

CTS Resistor Products

RES ARRAY 2 RES 2.2K OHM 0606

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

742C043 Series

2.2k Ohm ±5% 63mW Power Per Element Isolated 2 Resistor Network/Array ±200ppm/°C 0606, Concave

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	742C043222JTR	742C043 Series

Applications	DDR SDRAM, DRAM, MDDR	DDR SDRAM, DRAM, MDDR
Circuit Type	Isolated	Isolated
Grade	Automotive	Automotive
Height - Seated (Max) [Max]	0.7 mm	0.7 mm
Height - Seated (Max) [Max]	0.028 in	0.028 in
Mounting Type	Surface Mount	Surface Mount
Number of Pins	4	4
Number of Resistors	2	2
Operating Temperature [Max]	125 °C	125 °C
Operating Temperature [Min]	-55 °C	-55 °C
Package / Case	0606, Concave	0606, Concave
Power Per Element	63 mW	63 mW
Qualification	AEC-Q200	AEC-Q200
Resistance (Ohms)	2.2 kOhms	1 - 470 Ohms
Resistance (Ohms)	-	10k, 1M, 47k, 470k, 33k, 220k, 4.7k
Size / Dimension [x]	1.6 mm	1.6 mm
Size / Dimension [x]	0.063 in	0.063 in
Size / Dimension [y]	0.063 in	0.063 in
Size / Dimension [y]	1.6 mm	1.6 mm
Temperature Coefficient	200 ppm/°C	200 ppm/°C
Tolerance	5 %	1 - 5 %

742C043 Series

RES ARRAY 2 RES 49.9 OHM 0606

Part	Temperature Coefficient	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Circuit Type	Applications	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Package / Case	Tolerance	Mounting Type	Resistance (Ohms)	Number of Resistors	Power Per Element	Grade	Qualification	Operating Temperature [Min]	Operating Temperature [Max]	Number of Pins	Resistance (Ohms)
CTS Resistor Products 742C04349R9FP	200 ppm/°C	0.7 mm	0.028 in	Isolated	DDR SDRAM, DRAM, MDDR	0.063 in	1.6 mm	0.063 in	1.6 mm	0606, Concave	1 %	Surface Mount	49.9 Ohms	2	63 mW	Automotive	AEC-Q200	-55 °C	125 °C	4
CTS Resistor Products 742C043103JP	200 ppm/°C	0.7 mm	0.028 in	Isolated	DDR SDRAM, DRAM, MDDR	0.063 in	1.6 mm	0.063 in	1.6 mm	0606, Concave	5 %	Surface Mount		2	63 mW	Automotive	AEC-Q200	-55 °C	125 °C	4	10k
CTS Resistor Products 742C043221JP	200 ppm/°C	0.7 mm	0.028 in	Isolated	DDR SDRAM, DRAM, MDDR	0.063 in	1.6 mm	0.063 in	1.6 mm	0606, Concave	5 %	Surface Mount	220 Ohms	2	63 mW	Automotive	AEC-Q200	-55 °C	125 °C	4
CTS Resistor Products 742C043102JTR	200 ppm/°C	0.7 mm	0.028 in	Isolated	DDR SDRAM, DRAM, MDDR	0.063 in	1.6 mm	0.063 in	1.6 mm	0606, Concave	5 %	Surface Mount	1 kOhms	2	63 mW	Automotive	AEC-Q200	-55 °C	125 °C	4
CTS Resistor Products 742C043105JTR	200 ppm/°C	0.7 mm	0.028 in	Isolated	DDR SDRAM, DRAM, MDDR	0.063 in	1.6 mm	0.063 in	1.6 mm	0606, Concave	5 %	Surface Mount		2	63 mW	Automotive	AEC-Q200	-55 °C	125 °C	4	1M
CTS Resistor Products 742C043470JTR	200 ppm/°C	0.7 mm	0.028 in	Isolated	DDR SDRAM, DRAM, MDDR	0.063 in	1.6 mm	0.063 in	1.6 mm	0606, Concave	5 %	Surface Mount	47 Ohms	2	63 mW	Automotive	AEC-Q200	-55 °C	125 °C	4
CTS Resistor Products 742C043473JP	200 ppm/°C	0.7 mm	0.028 in	Isolated	DDR SDRAM, DRAM, MDDR	0.063 in	1.6 mm	0.063 in	1.6 mm	0606, Concave	5 %	Surface Mount		2	63 mW	Automotive	AEC-Q200	-55 °C	125 °C	4	47k
CTS Resistor Products 742C043123JP	200 ppm/°C	0.7 mm	0.028 in	Isolated	DDR SDRAM, DRAM, MDDR	0.063 in	1.6 mm	0.063 in	1.6 mm	0606, Concave	5 %	Surface Mount	12 kOhms	2	63 mW	Automotive	AEC-Q200	-55 °C	125 °C	4
CTS Resistor Products 742C043471JTR	200 ppm/°C	0.7 mm	0.028 in	Isolated	DDR SDRAM, DRAM, MDDR	0.063 in	1.6 mm	0.063 in	1.6 mm	0606, Concave	5 %	Surface Mount	470 Ohms	2	63 mW	Automotive	AEC-Q200	-55 °C	125 °C	4
CTS Resistor Products 742C043221JTR	200 ppm/°C	0.7 mm	0.028 in	Isolated	DDR SDRAM, DRAM, MDDR	0.063 in	1.6 mm	0.063 in	1.6 mm	0606, Concave	5 %	Surface Mount	220 Ohms	2	63 mW	Automotive	AEC-Q200	-55 °C	125 °C	4
