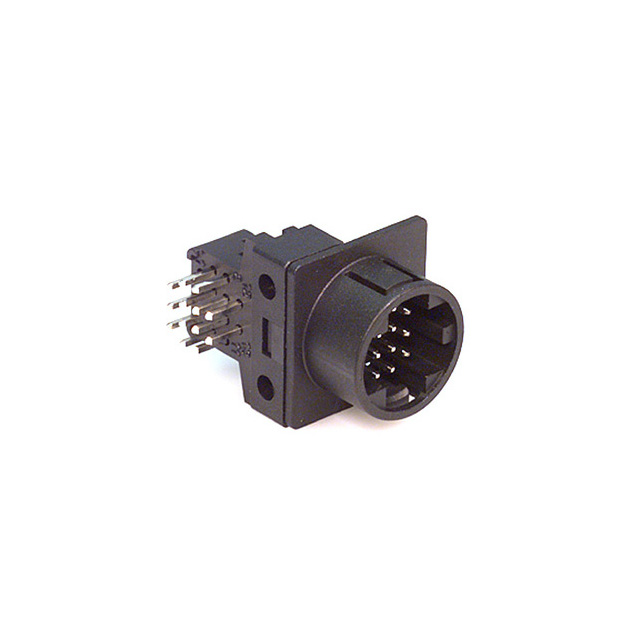

Specification	RP13A-12RC-13PB

Color	Black
Connector Type	Receptacle, Male Pins
Contact Finish - Mating	Silver
Contact Material	Brass
Current Rating	2 A
Fastening Type	Push-Pull
Insert Material	PBT, Polybutylene Terephthalate
Mounting Type	Through Hole, Right Angle
Number of Positions	13
Operating Temperature (Max)	60 °C
Operating Temperature (Min)	-10 °C
Orientation	Keyed
Primary Material	Plastic
Shell Material	Polybutylene Terephthalate (PBT)
Shell Size - Insert	12
Shell Size - Insert	12
Termination	Solder
Voltage Rating (AC)	100 VAC
Voltage Rating (DC)	140 VDC

RP13A Series

Part	Mounting Type	Housing Color	Features	Contact Type	Shell Size - Insert	Shell Size - Insert	Contact Shape	Insert Material	Fastening Type	Operating Temperature (Max)	Operating Temperature (Min)	Shielding	Contact Size	Type	Note	Includes	Screws Quantity	Includes Total Count	Material Flammability Rating	Connector Type	Number of Positions	Orientation	Shell Material	Contact Finish	Wire Gauge or Range - AWG (Min)	Wire Gauge or Range - AWG (Max)	Contact Material	Contact Termination	Mounting Feature	Primary Material	Termination	Contact Finish Thickness - Mating	Current Rating	Voltage Rating (DC)	Voltage Rating (AC)	Contact Finish - Mating	Color
Hirose Electric Co Ltd RP13A-12PK-20SC(71)	Free Hanging (In-Line)	Black	Backshell Cable Clamp Strain Relief	Crimp	12	12	Circular	PC Polycarbonate	Push-Pull	60 °C	-10 °C	Unshielded	1.2 mm	For Female Sockets	Contacts Not Included	Backshell Cable Clamp Connector Screw Spring Strain Relief	1 pcs	6 pcs	UL94 V-0	Plug Housing	20	Keyed	Polycarbonate (PC)
Hirose Electric Co Ltd RP13A-12PK-13SC	Free Hanging (In-Line)	Black	Backshell Cable Clamp Strain Relief	Crimp	12	12	Circular	PC Polycarbonate	Push-Pull	60 °C	-10 °C	Unshielded	1.2 mm 1.6 mm	For Female Sockets	Contacts Not Included	Backshell Cable Clamp Connector Screw Spring Strain Relief	1 pcs	6 pcs	UL94 V-0	Plug Housing	13	Keyed	Polycarbonate (PC)
Hirose Electric Co Ltd RP13A-SC-222				Socket										Signal Stamped										Silver	24 AWG	28 AWG	Phosphor Bronze	Crimp
Hirose Electric Co Ltd RP13A-12PP-15SC	Free Hanging (In-Line)	Black	Backshell Cable Clamp Strain Relief	Crimp	12	12	Circular	PC Polycarbonate	Push-Pull	60 °C	-10 °C	Unshielded	1.2 mm	For Female Sockets	Contacts Not Included	Backshell Cable Clamp Connector Screw Spring Strain Relief	1 pcs	6 pcs	UL94 V-0	Plug Housing	15	Keyed	Polycarbonate (PC)
Hirose Electric Co Ltd RP13A-12RB-13PC(71)	Panel Mount	Black		Crimp	12	12	Circular	PC Polycarbonate	Push-Pull	60 °C	-10 °C	Unshielded	1.2 mm 1.6 mm	For Male Pins	Contacts Not Included				UL94 V-0	Receptacle Housing	13	Keyed	Polycarbonate (PC)						Bulkhead Rear Side Nut
Hirose Electric Co Ltd RP13A-12R-13SC(72)
Hirose Electric Co Ltd RP13A-12RA-13PA(01)
Hirose Electric Co Ltd RP13A-SC-112			Insulation Support	Socket										Signal Stamped										Silver	18 AWG	22 AWG	Phosphor Bronze	Crimp
Hirose Electric Co Ltd RP13A-12RA-13PA(71)	Panel Mount Through Hole				12	12		PC Polycarbonate	Push-Pull	60 °C	-10 °C								UL94 V-0	Male Pins Receptacle	13	Keyed	Polycarbonate (PC)				Phosphor Bronze		Flange	Plastic	Solder	31.5 µin	2 A	140 VDC	100 VAC	Silver	Black
Hirose Electric Co Ltd RP13A-12PA-13SC(71)	Free Hanging (In-Line)	Black	Backshell Cable Clamp Strain Relief	Crimp	12	12	Circular	PC Polycarbonate	Push-Pull	60 °C	-10 °C	Unshielded	1.2 mm 1.6 mm	For Female Sockets	Contacts Not Included	Backshell Cable Clamp Connector Screw Spring Strain Relief	1 pcs	6 pcs	UL94 V-0	Plug Housing	13	Keyed	Polycarbonate (PC)
