15DYS818-090200W-1
ActiveIDEAL POWER

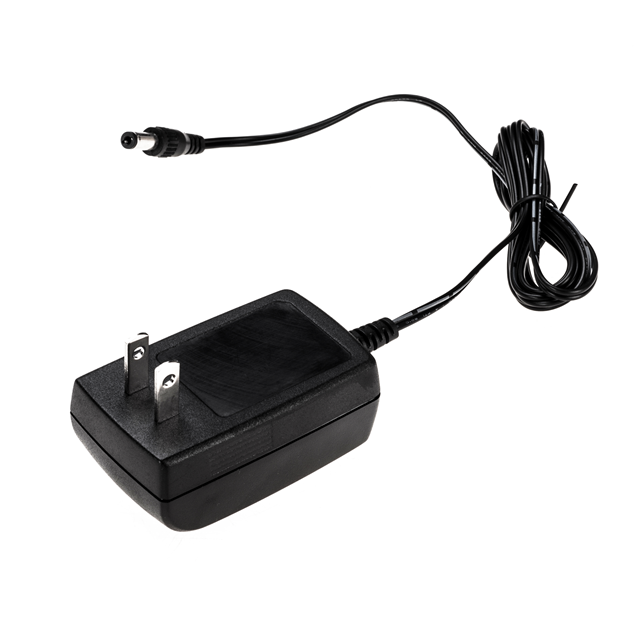

AC/DC WALL MOUNT ADAPTER 9V 18W
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
15DYS818-090200W-1
ActiveIDEAL POWER
AC/DC WALL MOUNT ADAPTER 9V 18W
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 15DYS818-090200W-1 | 15DYS818 Series |
|---|---|---|
| Applications | ITE (Commercial) | ITE (Commercial) |
| Approval Agency | cULus | CE, cULus, CE, TUV |
| Current - Output (Max) [Max] | 2 A | 1.2 - 2 A |
| Efficiency | Level VI | Level VI |
| Form | Wall Mount (Class II) | Wall Mount (Class I), Wall Mount (Class II) |
| Input Connector | NEMA 1-15P | BS 1363, NEMA 1-15P, CEE 7/16 |
| Input Type | Fixed Blade | Fixed Blade |
| Operating Temperature [Max] | 45 °C | 45 °C |
| Operating Temperature [Min] | 0 °C | 0 °C |
| Output Connector | Barrel Plug | Barrel Plug |
| Output Connector [diameter] | 2.1 mm, 5.5 mm | 2.1 - 5.5 mm |
| Output Connector [z] | 12 mm | 12 mm |
| Power (Watts) | 18 W | 18 W |
| Region Utilized | North America | United Kingdom, North America, Europe |
| Size / Dimension [x] | 2.66 in | 2.6 - 2.66 in |
| Size / Dimension [x] | 67.5 mm | 66 - 67.5 mm |
| Size / Dimension [y] | 45.5 mm | 45.5 - 49.3 mm |
| Size / Dimension [y] | 1.79 " | 1.79 - 1.94 " |
| Size / Dimension [z] | 28 mm | 28 - 34.8 mm |
| Size / Dimension [z] | 1.1 in | 1.1 - 1.37 in |
| Standard Number | 62368-1 | 62368-1 |
| Voltage - Input [Max] | 264 VAC | 264 VAC |
| Voltage - Input [Min] | 90 VAC | 90 VAC |
| Voltage - Output | 9 V | 9 - 15 V |
15DYS818 Series
ADAPTER, AC-DC, 1 O/P, 9V, 2A ROHS COMPLIANT: YES
| Part | Form | Efficiency | Standard Number | Power (Watts) | Voltage - Output | Voltage - Input [Min] | Voltage - Input [Max] | Input Type | Current - Output (Max) [Max] | Region Utilized | Input Connector | Operating Temperature [Max] | Operating Temperature [Min] | Size / Dimension [z] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [y] | Applications | Approval Agency | Output Connector | Output Connector [diameter] | Output Connector [z] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
IDEAL POWER 15DYS818-090200W-3 | Wall Mount (Class I) | Level VI | 62368-1 | 18 W | 9 V | 90 VAC | 264 VAC | Fixed Blade | 2 A | United Kingdom | BS 1363 | 45 °C | 0 °C | 1.37 in | 34.8 mm | 66 mm | 2.6 in | 49.3 mm | 1.94 " | ITE (Commercial) | CE | Barrel Plug | 2.1 mm, 5.5 mm | 12 mm |
IDEAL POWER 15DYS818-090200W-1 | Wall Mount (Class II) | Level VI | 62368-1 | 18 W | 9 V | 90 VAC | 264 VAC | Fixed Blade | 2 A | North America | NEMA 1-15P | 45 °C | 0 °C | 1.1 in | 28 mm | 67.5 mm | 2.66 in | 45.5 mm | 1.79 " | ITE (Commercial) | cULus | Barrel Plug | 2.1 mm, 5.5 mm | 12 mm |
IDEAL POWER 15DYS818-150120W-2 | Wall Mount (Class II) | Level VI | 62368-1 | 18 W | 15 VDC | 90 VAC | 264 VAC | Fixed Blade | 1.2 A | Europe | CEE 7/16 | 45 °C | 0 °C | 1.1 in | 28 mm | 67.5 mm | 2.66 in | 45.5 mm | 1.79 " | ITE (Commercial) | CE, TUV | Barrel Plug | 2.1 mm, 5.5 mm | 12 mm |
IDEAL POWER 15DYS818-150120W-3 | Wall Mount (Class I) | Level VI | 62368-1 | 18 W | 15 VDC | 90 VAC | 264 VAC | Fixed Blade | 1.2 A | United Kingdom | BS 1363 | 45 °C | 0 °C | 1.37 in | 34.8 mm | 66 mm | 2.6 in | 49.3 mm | 1.94 " | ITE (Commercial) | CE | Barrel Plug | 2.1 mm, 5.5 mm | 12 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 10.00 | |
| 5 | $ 9.19 | |||
| 10 | $ 8.87 | |||
| 25 | $ 8.46 | |||
| 50 | $ 8.16 | |||
| 100 | $ 7.87 | |||
| 250 | $ 7.50 | |||
| 500 | $ 7.23 | |||
Description
General part information
15DYS818 Series
9V 18 W AC/DC External Wall Mount (Class II) Adapter Fixed Blade Input
