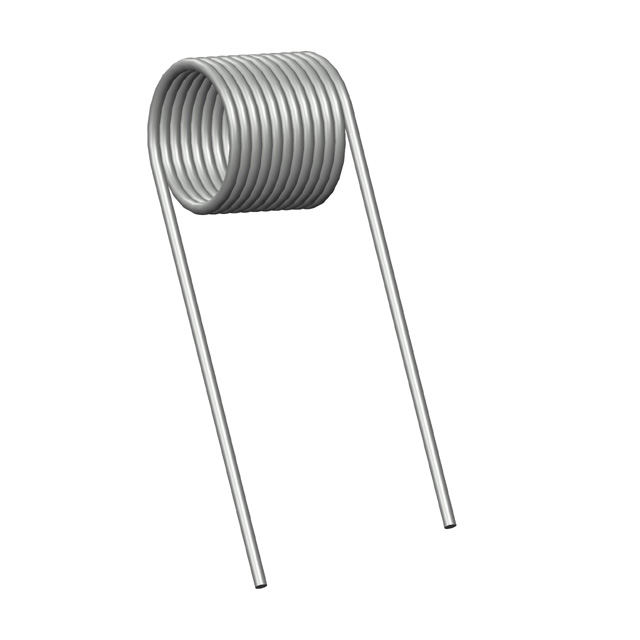

TO-5174RCS
ActiveCentury Spring Corp
TOR O=.694, W=.054
TO-5174RCS
ActiveCentury Spring Corp
TOR O=.694, W=.054
Description
General part information
TO-5174RCS
TOR O=.694, W=.054
Technical Specifications
Parameters and characteristics for this part
| Specification | TO-5174RCS |
|---|---|
| Deflection Angle | 330 ° |
| Diameter - Outside | 0.69 in |
| Finish | None |
| Leg Length | 2 in |
| Mandrel Diameter | 0.46 in |
| Material | Music Wire |
| Number of Coils | 11.5 |
| Wind Direction | Right |
| Wire Diameter | 0.054 in |
