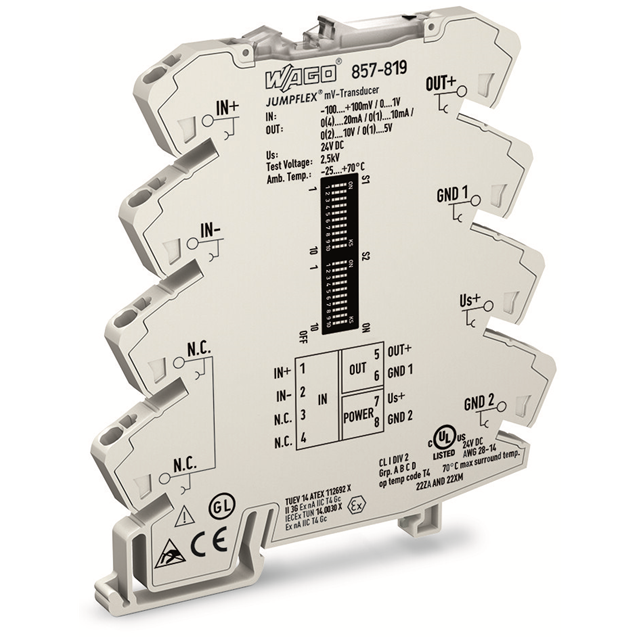

Specification	857-819

Input Resistance (Additional) Maximum	1 MOhm
Input Resistance (Additional) Minimum	0 mOhm
Input Type	Voltage
Input Voltage Range (Maximum)	1 V
Input Voltage Range (Minimum)	0 V
Isolation	2500 V
Mounting Type	DIN Rail
Operating Temperature (Max)	70 °C
Operating Temperature (Min)	-25 °C
Output Current Range (Max)	20 mA
Output Current Range (Min)	0 mA
Output Type	Current, Voltage
Output Voltage Range (Max)	10 VDC
Output Voltage Range (Min)	0 VDC
Termination Style	Spring Terminal
Type	Signal Conditioner
Voltage - Supply	24 VDC
