PSU12435A
ActiveCornell Dubilier Knowles
CAP ALUM 124UF 250V QC CHAS MT
PSU12435A
ActiveCornell Dubilier Knowles
CAP ALUM 124UF 250V QC CHAS MT
Description
General part information
PSU12435A

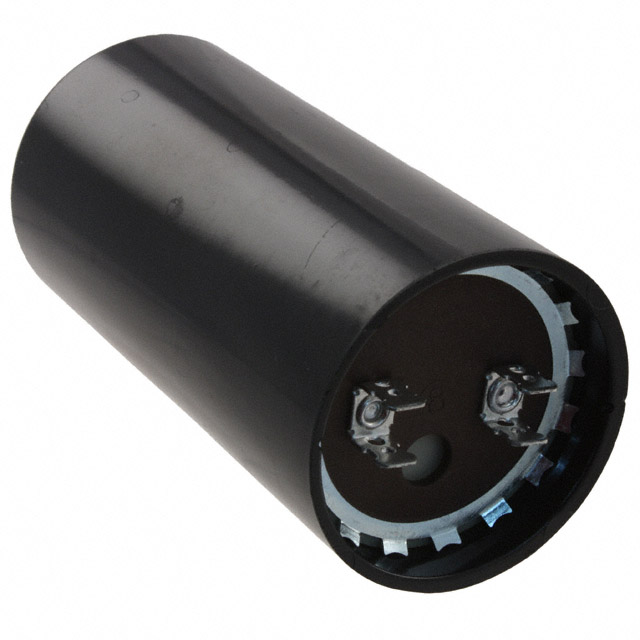

124 µF 250 V Aluminum Electrolytic Capacitors Radial, Can - QC Terminals
Technical Specifications
Parameters and characteristics for this part
| Specification | PSU12435A |
|---|---|
| Applications | Motor Start |
| Capacitance | 124 µF |
| Height - Seated (Max) | 4.375 in |
| Mounting Type | Chassis Mount |
| Operating Temperature (Max) | 65 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | Radial, Can - QC Terminals |
| Polarization | Bi-Polar |
| Size / Dimension Diameter | 1.813 in |
| Tolerance (Negative) | 0 % |
| Tolerance (Positive) | 20 % |
| Voltage - Rated | 250 V |
