Description
General part information

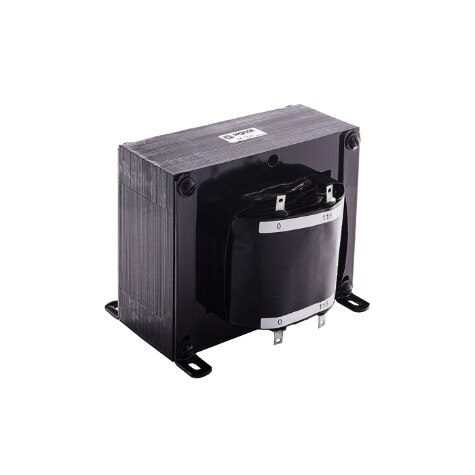

24-50
POWER TRANSFORMERS RECTIFIER POWER TRANSFORMER
Technical Specifications
Parameters and characteristics for this part
| Specification | 24-50 |
|---|---|
| Center Tap | Yes |
| Current - Output (Max) Parallel | 100 A |
| Current - Output (Max) Series | 50 A |
| Height - Seated (Max) | 134.9 mm |
| Mounting Type | Chassis Mount |
| Power - Max | 1200 W |
| Primary Winding(s) | Single, Multiple Taps |
| Secondary Winding(s) | Dual |
| Size / Dimension Length | 162 mm |
| Size / Dimension Width | 158.8 mm |
| Termination Style | Solder, Quick Connect |
| Type | Laminated Core |
| Voltage - Isolation | 1500 Vrns |
| Voltage - Primary | 115V, 125V, 105V |
| Voltage - Secondary (Full Load) (Parallel) | 12 V |
| Voltage - Secondary (Full Load) (Series) | 24 V |
| Weight | 32 lbs |
