LAB4/0-12-ER
ActivePanduit Corp

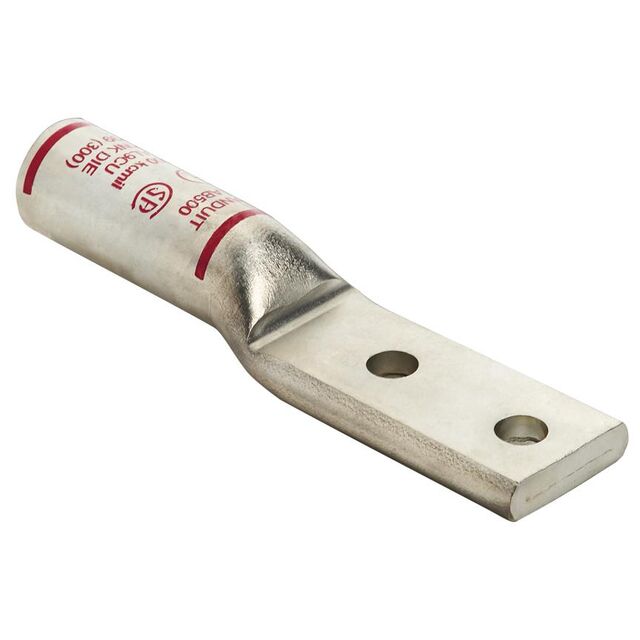

ALUMINUM COMPRESSION LUG, 2 HOLE
LAB4/0-12-ER
ActivePanduit Corp
ALUMINUM COMPRESSION LUG, 2 HOLE
Description
General part information
LAB4/0-12-ER
Terminal Connector Rectangular Standard 4/0 AWG 1/2 Stud
Technical Specifications
Parameters and characteristics for this part
| Specification | LAB4/0-12-ER |
|---|---|
| Color | White |
| Contact Finish | Tin |
| Contact Material | Aluminum |
| Diameter - Barrel ID | 0.55 in |
| Diameter - Barrel OD | 0.88 in |
| Diameter - Ring ID | 0.53 in |
| Insulation | Non-Insulated |
| Length - Overall | 5.94 in |
| Mounting Type | Free Hanging (In-Line) |
| Stud/Tab Size | 0.5 Stud |
| Tab Thickness | 0.31 in |
| Terminal Style | Two Stud Holes |
| Terminal Type | Standard |
| Termination | Crimp |
| Width - Outer Edges | 1.19 in |
| Wire Gauge | 4/0 AWG |
