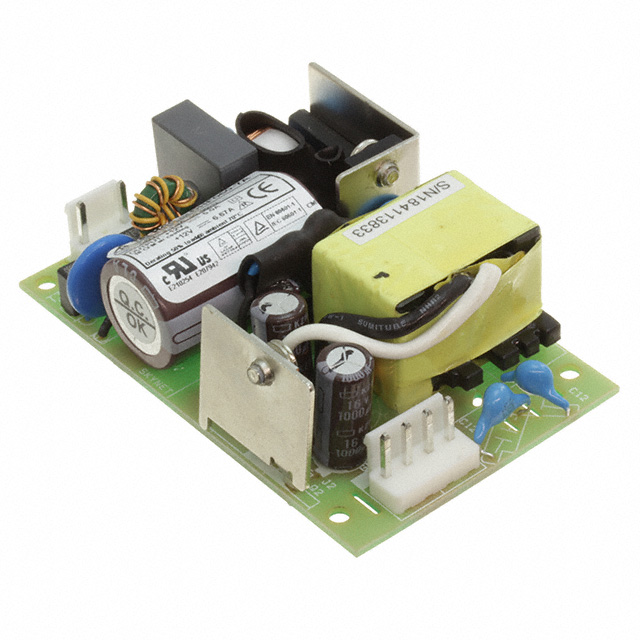

DHF060-7A

Active

Tri-Mag, LLC

AC/DC CONVERTER 12V 60W

Search across all available documentation for this part.

Active

Tri-Mag, LLC

AC/DC CONVERTER 12V 60W

Technical Specifications

Parameters and characteristics commom to parts in this series

AC/DC CONVERTER 24V 60W

Part	Applications	Voltage - Input [Min]	Voltage - Input [Max]	Approval Agency	Power (Watts)	Power (Watts)	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Number of Outputs	Type	Features	Current - Output 1	Voltage - Output 1	Efficiency	Mounting Type
Tri-Mag, LLC DHF060-9A	ITE (Commercial), Medical	90 VAC	264 VAC	CB, CE	72 W	60 W	0.98 in	50.8 mm	2 in	25 mm	3 "	76.2 mm	1	Open Frame	Universal Input	2.5 A	24 V	89 %	Chassis Mount
Tri-Mag, LLC DHF060-9	ITE (Commercial), Medical	90 VAC	264 VAC	CB, CE	72 W	60 W	0.98 in	50.8 mm	2 in	25 mm	3 "	76.2 mm	1	Open Frame	Universal Input	2.5 A	24 V	89 %	Chassis Mount
Tri-Mag, LLC DHF060-7A	ITE (Commercial), Medical	90 VAC	264 VAC	CB, CE	72 W	60 W	0.98 in	50.8 mm	2 in	25 mm	3 "	76.2 mm	1	Open Frame	Universal Input	5 A	12 V	89 %	Chassis Mount

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	50	$ 64.95

General part information

Open Frame AC DC Converters 1 Output 12V 90 ~ 264 VAC Input
