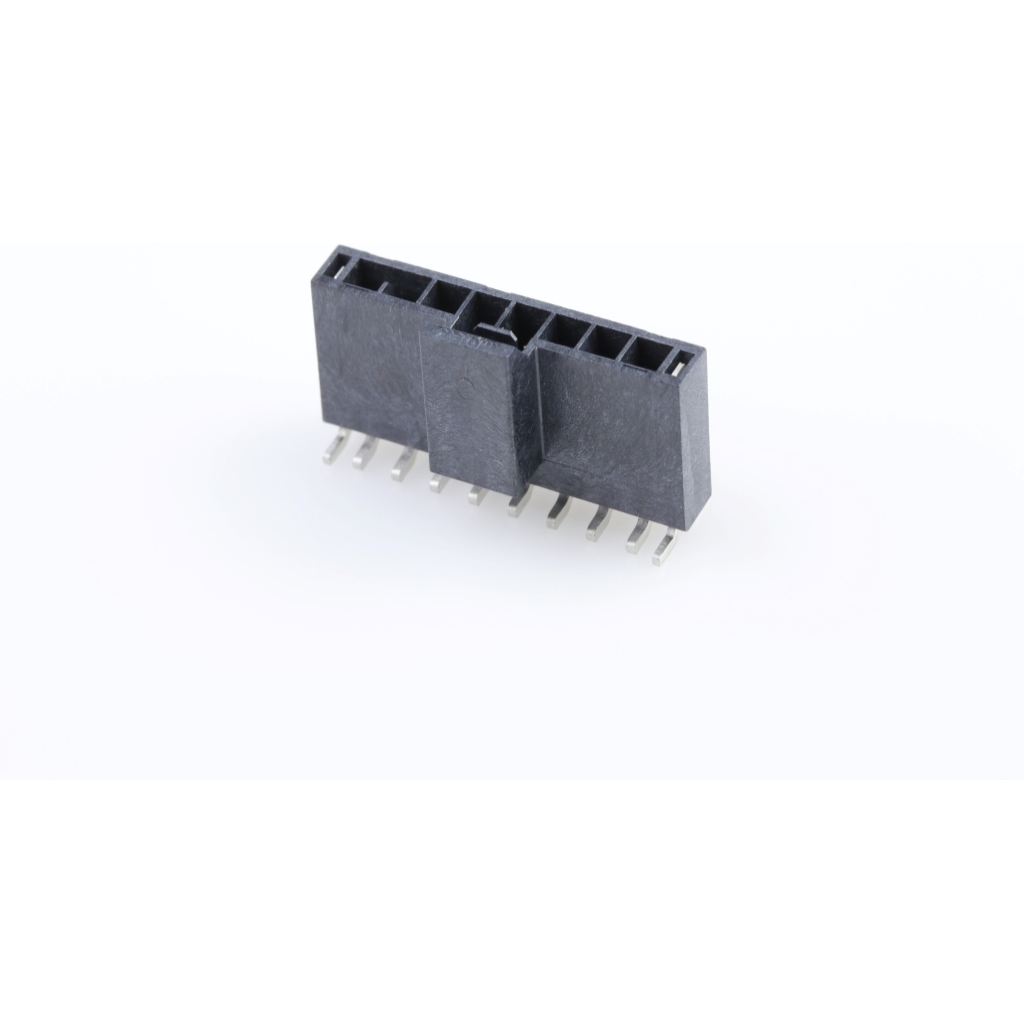

Specification	1054311108

Connector Type	Header
Contact Finish - Mating	Tin
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	30 µin
Contact Material	Brass
Contact Shape	Square
Contact Type	Male Pin
Current Rating	4 A
Fastening Type	Latch Holder
Features	Solder Retention, Pick and Place
Insulation Color	Black
Insulation Height	0.382 in
Insulation Material	Liquid Crystal Polymer (LCP)
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount
Number of Positions	8
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature (Max)	105 °C
Operating Temperature (Min)	-40 °C
Pitch - Mating	0.098 in
Shrouding	Shrouded - 4 Wall
Style	Cable/Wire, Board
Termination	Solder
Voltage Rating	250 V

105431 Series

Headers & Wire Housings NANO-FIT HDR 01X04P VT SN SMT

Part	Mounting Type	Contact Material	Number of Positions	Contact Shape	Pitch - Mating	Current Rating	Contact Type	Insulation Color	Number of Positions Loaded	Fastening Type	Style	Insulation Material	Contact Finish Thickness - Mating	Insulation Height	Contact Finish - Post	Voltage Rating	Features	Connector Type	Operating Temperature (Min)	Operating Temperature (Max)	Material Flammability Rating	Number of Rows	Shrouding	Termination	Contact Finish - Mating	Contact Finish Thickness - Post	Applications
Molex 1054311303	Surface Mount	Brass	3	Square	0.098 in	4 A	Male Pin	Black	All	Latch Holder	Board Cable/Wire	Liquid Crystal Polymer (LCP)	30 µin	0.382 in	Tin	250 V	Pick and Place Solder Retention	Header	-40 °C	115 °C	UL94 V-0	1	Shrouded - 4 Wall	Solder	Gold
Molex 1054312104	Surface Mount	Brass	4	Square	0.098 in	4 A	Male Pin	Natural	All	Latch Holder	Board Cable/Wire	Liquid Crystal Polymer (LCP)	30 µin	0.382 in	Tin	250 V	Pick and Place Solder Retention	Header	-40 °C	105 °C	UL94 V-0	1	Shrouded - 4 Wall	Solder	Tin
Molex 1054312103	Surface Mount	Brass	3	Square	0.098 in	4 A	Male Pin	Natural	All	Latch Holder	Board Cable/Wire	Liquid Crystal Polymer (LCP)	30 µin	0.382 in	Tin	250 V	Pick and Place Solder Retention	Header	-40 °C	105 °C	UL94 V-0	1	Shrouded - 4 Wall	Solder	Tin	30 µin	Automotive General Purpose Industrial Medical Military Telecommunications
Molex 1054312106	Surface Mount	Brass	6	Square	0.098 in	4 A	Male Pin	Natural	All	Latch Holder	Board Cable/Wire	Liquid Crystal Polymer (LCP)	30 µin	0.382 in	Tin	250 V	Pick and Place Solder Retention	Header	-40 °C	105 °C	UL94 V-0	1	Shrouded - 4 Wall	Solder	Tin	30 µin	Automotive General Purpose Industrial Medical Military Telecommunications
Molex 1054311102	Surface Mount	Brass	2	Square	0.098 in	4 A	Male Pin	Black	All	Latch Holder	Board Cable/Wire	Liquid Crystal Polymer (LCP)	30 µin	0.382 in	Tin	250 V	Pick and Place Solder Retention	Header	-40 °C	105 °C	UL94 V-0	1	Shrouded - 4 Wall	Solder	Tin	30 µin	Automotive General Purpose Industrial Medical Military Telecommunications
Molex 1054311304	Surface Mount	Brass	4	Square	0.098 in	4 A	Male Pin	Black	All	Latch Holder	Board Cable/Wire	Liquid Crystal Polymer (LCP)	30 µin	0.382 in	Tin	250 V	Pick and Place Solder Retention	Header	-40 °C	115 °C	UL94 V-0	1	Shrouded - 4 Wall	Solder	Gold
Molex 1054312204	Surface Mount	Brass	4	Square	0.098 in	4 A	Male Pin	Natural	All	Latch Holder	Board Cable/Wire	Liquid Crystal Polymer (LCP)	15 µin	0.382 in	Tin	250 V	Pick and Place Solder Retention	Header	-40 °C	115 °C	UL94 V-0	1	Shrouded - 4 Wall	Solder	Gold
Molex 1054311107	Surface Mount	Brass	7	Square	0.098 in	4 A	Male Pin	Black	All	Latch Holder	Board Cable/Wire	Liquid Crystal Polymer (LCP)	30 µin	0.382 in	Tin	250 V	Pick and Place Solder Retention	Header	-40 °C	105 °C	UL94 V-0	1	Shrouded - 4 Wall	Solder	Tin	30 µin	Automotive General Purpose Industrial Medical Military Telecommunications
Molex 1054311203	Surface Mount	Brass	3	Square	0.098 in	4 A	Male Pin	Black	All	Latch Holder	Board Cable/Wire	Liquid Crystal Polymer (LCP)	15 µin	0.382 in	Tin	250 V	Pick and Place Solder Retention	Header	-40 °C	115 °C	UL94 V-0	1	Shrouded - 4 Wall	Solder	Gold	30 µin	Automotive General Purpose Industrial Medical Military Telecommunications
Molex 1054312402	Surface Mount	Brass	2	Square	0.098 in	4 A	Male Pin	Natural	All	Latch Holder	Board Cable/Wire	Liquid Crystal Polymer (LCP)	30 µin	0.382 in	Tin	250 V	Pick and Place Solder Retention	Header	-40 °C	115 °C	UL94 V-0	1	Shrouded - 4 Wall	Solder	Gold
