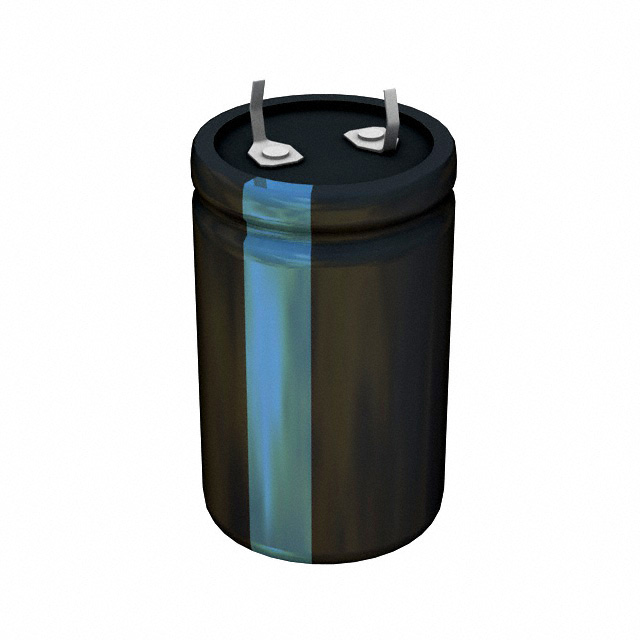

381LX182M100J042
ActiveCornell Dubilier Knowles
CAP ALUM 1800UF 20% 100V SNAP TH
381LX182M100J042
ActiveCornell Dubilier Knowles
CAP ALUM 1800UF 20% 100V SNAP TH
Description
General part information
381LX182M100J042
1800 µF 100 V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 3000 Hrs @ 105°C
Technical Specifications
Parameters and characteristics for this part
| Specification | 381LX182M100J042 |
|---|---|
| Applications | General Purpose |
| Capacitance | 1800 µF |
| Height - Seated (Max) | 1.654 in |
| Lead Spacing | 0.394 in |
| Lifetime | 3000 Hrs |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 105 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | Can - Snap-In, Radial |
| Polarization | Polar |
| Size / Dimension Diameter | 0.984 in |
| Tolerance | 20 % |
| Voltage - Rated | 100 VAC/DC |
