TG-AH486-5.5-5-3.5-1A
Obsoletet-Global Technology
THERM PAD 5.5X5MM W/ADH GRAY
TG-AH486-5.5-5-3.5-1A
Obsoletet-Global Technology
THERM PAD 5.5X5MM W/ADH GRAY
Description
General part information
TG-AH486-5.5-5-3.5-1A

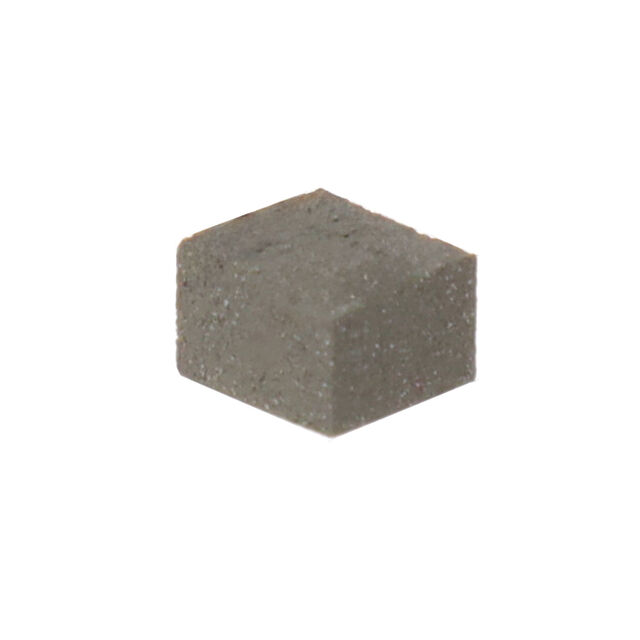

Thermal Pad Gray 5.50mm x 5.00mm Rectangular Adhesive - One Side
Technical Specifications
Parameters and characteristics for this part
| Specification | TG-AH486-5.5-5-3.5-1A |
|---|---|
| Adhesive | Adhesive - One Side |
| Color | Gray |
| Material | Silicone Elastomer |
| Outline Length | 5.5 mm |
| Outline Width | 5 mm |
| Shape | Rectangular |
| Shelf Life | 12 Months |
| Shelf Life Start | Date of Purchase |
| Thermal Conductivity | 3.2 W/m-K |
| Thickness | 0.138 in |
| Type | Sheet, Conductive Pad |
| Usage | Multi |
