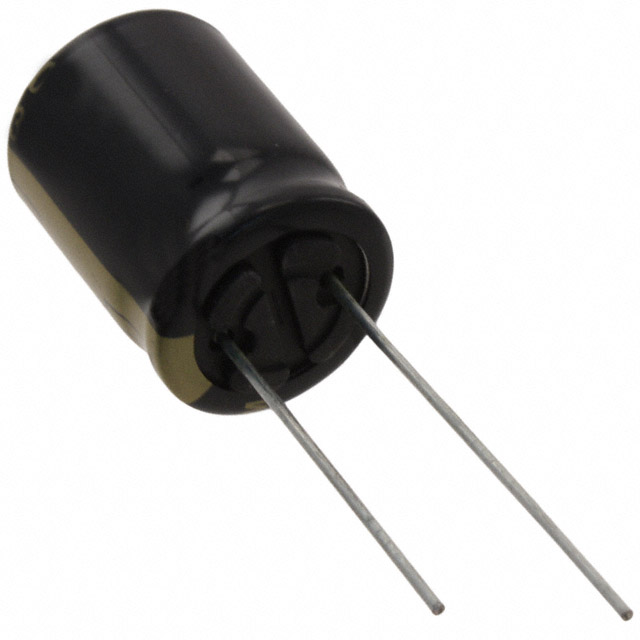

Specification	EEU-FM0J122B

Applications	General Purpose
Capacitance	1200 µF
Height - Seated (Max)	0.689 in
Impedance	26 mOhms
Lead Spacing	0.197 in
Lifetime	4000 Hrs
Mounting Type	Through Hole
Operating Temperature (Max)	105 °C
Operating Temperature (Min)	-40 °C
Package / Case	Can, Radial
Polarization	Polar
Ripple Current	1.432 A, 1.79 A
Size / Dimension Diameter	0.394 in
Tolerance	20 %
Voltage - Rated	6.3 V

EEU-FM Series

...

Part	Tolerance	Capacitance	Impedance	Ripple Current	Operating Temperature (Min)	Operating Temperature (Max)	Package / Case	Lifetime	Height - Seated (Max)	Applications	Polarization	Size / Dimension Diameter	Mounting Type	Lead Spacing	Voltage - Rated
Panasonic Electronic Components EEU-FM1C471LBJ	20 %	470 µF	41 mOhms	1.24 A 930 mA	-40 °C	105 °C	Can Radial	3000 Hrs	16.51 mm	General Purpose	Polar	0.315 in	Through Hole	0.197 in	16 V
Panasonic Electronic Components EEU-FM1V221B	20 %	220 µF	38 mOhms	1.29 A 903 mA	-40 °C	105 °C	Can Radial	4000 Hrs	0.551 in	General Purpose	Polar	0.394 in	Through Hole	0.197 in	35 V
Panasonic Electronic Components EEU-FM1C681L	20 %	680 µF	30 mOhm	1.17 A 1.56 A	-40 °C	105 °C	Can Radial	4000 Hrs	0.866 in	General Purpose	Polar	0.315 in	Through Hole	0.138 in	16 V
Panasonic Electronic Components EEU-FM0J222LB	20 %	2200 ĄF	18 mOhm	1.976 A 2.47 A	-40 °C	105 °C	Can Radial	5000 Hrs	1.063 in	General Purpose	Polar	0.394 in	Through Hole	0.197 in	6.3 V
Panasonic Electronic Components EEU-FM1C152B	20 %	1500 µF	18 mOhm	2.08 A 2.6 A	-40 °C	105 °C	Can Radial	5000 Hrs	0.866 in	General Purpose	Polar	0.492 in	Through Hole	0.197 in	16 V
Panasonic Electronic Components EEU-FM1A392SB	20 %	3900 µF	17 mOhms	2.64 A 3.3 A	-40 °C	105 °C	Can Radial	5000 Hrs	0.866 in	General Purpose	Polar	0.63 in	Through Hole	0.295 in	10 V
Panasonic Electronic Components EEU-FM1E331L	20 %	330 µF	41 mOhms	1.24 A 868 mA	-40 °C	105 °C	Can Radial	3000 Hrs	16.51 mm	General Purpose	Polar	0.315 in	Through Hole	0.138 in	25 VAC
Panasonic Electronic Components EEU-FM1E821LB	20 %	820 µF	18 mOhm	1.853 A 2.47 A	-40 °C	105 °C	Can Radial	5000 Hrs	1.063 in	General Purpose	Polar	0.394 in	Through Hole	0.197 in	25 VAC
Panasonic Electronic Components EEU-FM1C471LB	20 %	470 µF	41 mOhms	1.24 A 930 mA	-40 °C	105 °C	Can Radial	3000 Hrs	16.51 mm	General Purpose	Polar	0.315 in	Through Hole	0.197 in	16 V
Panasonic Electronic Components EEU-FM1H331LB	20 %	330 µF	22 mOhms	1.505 A 2.15 A	-40 °C	105 °C	Can Radial	5000 Hrs	1.063 in	General Purpose	Polar	0.394 in	Through Hole	0.197 in	50 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

EEU-FM0J122B | Datasheet
