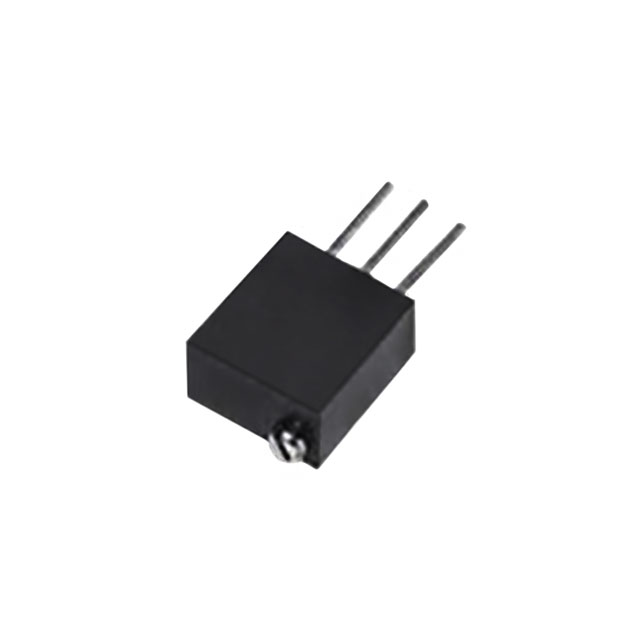

1309W503
ObsoleteNidec Components Corporation
TRIMMER 50K OHM 0.5W PC PIN TOP
1309W503
ObsoleteNidec Components Corporation
TRIMMER 50K OHM 0.5W PC PIN TOP
Description
General part information
1309W503
50 kOhms 0.5W, 1/2W PC Pins Through Hole Trimmer Potentiometer Wirewound 19.0 Turn Top Adjustment
Technical Specifications
Parameters and characteristics for this part
| Specification | 1309W503 |
|---|---|
| Adjustment Type | Top Adjustment |
| Mounting Type | Through Hole |
| Number of Turns | 19 turns |
| Power (Watts) | 500 mW |
| Power (Watts) Options | 1/2W |
| Resistance | 50 kOhm |
| Resistive Material | Wirewound |
| Size / Dimension Length | 0.382 in |
| Size / Dimension Shape | Rectangular |
| Size / Dimension Width | 0.217 in |
| Temperature Coefficient | 50 ppm/°C |
| Termination Style | PC Pins |
| Tolerance | 10 % |
