7282-8PG-3ES

Active

Conxall/Switchcraft

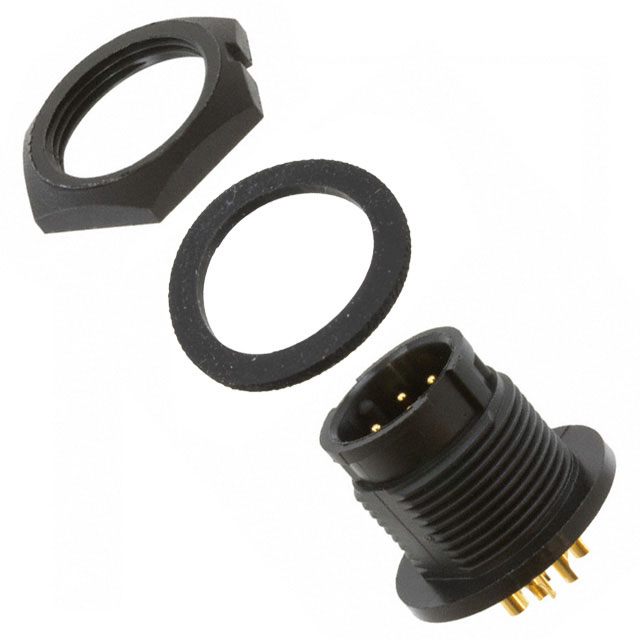

CONN RCPT MALE 8P GOLD SLDR CUP

Search across all available documentation for this part.

Active

Conxall/Switchcraft

CONN RCPT MALE 8P GOLD SLDR CUP

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	7282-8PG-3ES	7282-8PG Series

Applications	Automotive, Communication Systems, Instrumentation	Automotive, Communication Systems, Instrumentation
Backshell Material, Plating	Polyamide (PA), Nylon	Polyamide (PA), Nylon
Color	Black	Black
Connector Type	Receptacle, Male Pins	Receptacle, Male Pins
Contact Finish - Mating	Gold	Gold
Contact Material	Brass	Brass
Current Rating (Amps)	Varies by Wire Gauge	Varies by Wire Gauge
Fastening Type	Bayonet Lock	Bayonet Lock
Ingress Protection	Weathertight	Weathertight
Mounting Feature	Bulkhead - Front Side Nut	Bulkhead - Front Side Nut
Number of Positions	8	8
Operating Temperature [Max]	115 °C	115 °C
Operating Temperature [Min]	-40 °C	-40 °C
Orientation	Keyed	Keyed
Primary Material	Plastic	Plastic
Shielding	Unshielded	Unshielded
Voltage Rating	600 V	600 V

CONN RCPT MALE 8P GOLD SLDR CUP

Part	Number of Positions	Shielding	Contact Finish - Mating	Color	Primary Material	Contact Material	Operating Temperature [Min]	Operating Temperature [Max]	Applications	Mounting Feature	Backshell Material, Plating	Ingress Protection	Current Rating (Amps)	Orientation	Voltage Rating	Fastening Type	Connector Type
Conxall/Switchcraft 7282-8PG-3ES	8	Unshielded	Gold	Black	Plastic	Brass	-40 °C	115 °C	Automotive, Communication Systems, Instrumentation	Bulkhead - Front Side Nut	Nylon, Polyamide (PA)	Weathertight	Varies by Wire Gauge	Keyed	600 V	Bayonet Lock	Male Pins, Receptacle
Conxall/Switchcraft 7282-8PG-300	8	Unshielded	Gold	Black	Plastic	Brass	-40 °C	115 °C	Automotive, Communication Systems, Instrumentation	Bulkhead - Front Side Nut	Nylon, Polyamide (PA)	Weathertight	Varies by Wire Gauge	Keyed	600 V	Bayonet Lock	Male Pins, Receptacle

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

8 Position Circular Connector Receptacle, Male Pins Solder Cup
